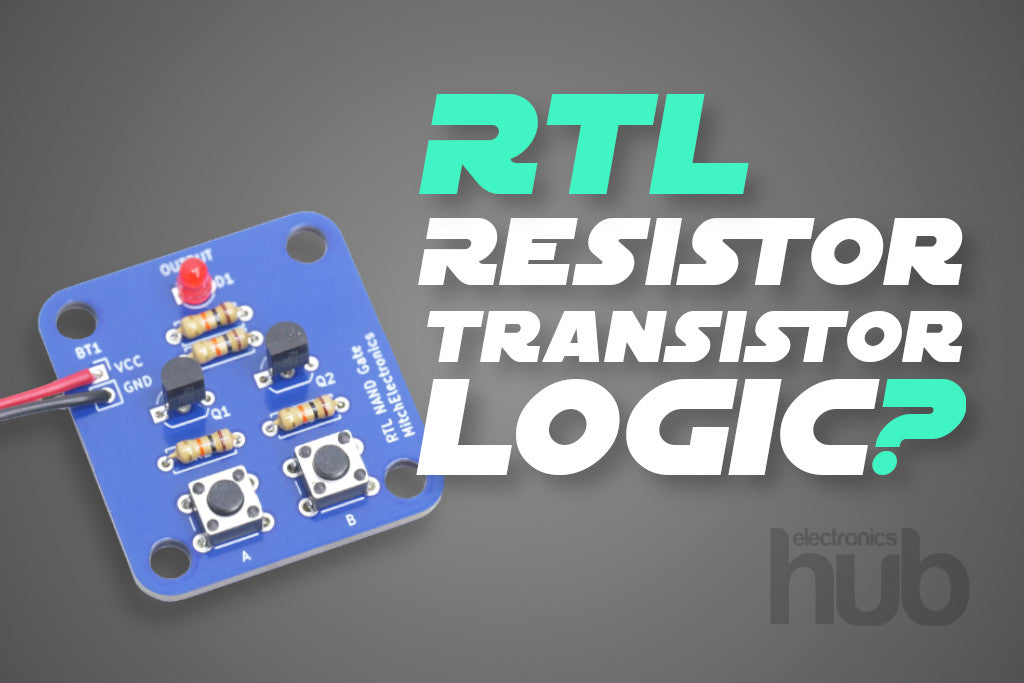

What is Resistor Transistor Logic?

Resistor-Transistor Logic (RTL) is a family of logic gates used in digital circuits, built using resistors and transistors. It was one of the earliest forms of digital logic before more advanced technologies like TTL (Transistor-Transistor Logic) and CMOS (Complementary Metal-Oxide-Semiconductor) became prevalent.

In RTL circuits:

• Resistors are used to limit the current flowing through the circuit.
• Transistors act as switches to control the flow of current.

In an RTL gate, the transistor typically functions as a switch that connects or disconnects the output from the ground. The resistors are placed in such a way that they control the base current of the transistor, thereby determining its state (on or off).

Basic RTL Gate:

For a simple NOT gate:

• A resistor is placed between the power supply and the base of the transistor.
• The output is taken from the collector of the transistor, and when the input voltage is high (1), the transistor conducts, grounding the output (making it 0). When the input is low (0), the transistor doesn't conduct, and the output is pulled high (1).

Why was RTL important?

RTL was one of the first types of logic circuits used in early computing systems and paved the way for more efficient logic families. However, it had limitations in terms of speed and power consumption, which led to the development of more advanced logic families like TTL and CMOS.

Where would I use RTL?

Historical Use:

1. Early Computers and Digital Circuits:
   • In the 1950s and 1960s, RTL was used to build basic logic gates and circuits in early computers, calculators, and other digital systems. At that time, RTL was relatively simple and inexpensive to produce with the available transistor technology.
2. Low-Frequency and Low-Speed Applications:
   • Since RTL had relatively slow switching times and poor noise margins, it was often used in circuits where high speed and low power consumption weren’t critical. This could include some low-frequency control systems or simple switching applications.
3. Simple Logic Circuits:
   • Basic combinational logic circuits, like AND, OR, and NOT gates, could be built with RTL for very simple digital logic applications.

Modern-Day Use:

Although RTL is largely obsolete for most modern digital designs, there might still be some niche applications or educational contexts where you would encounter it:

1. Educational Purposes:

   • RTL might be studied in introductory electronics courses to help students understand how basic logic circuits work at the transistor level. It serves as a simple, foundational example of how logic gates can be constructed with transistors and resistors.

2. Low Power, Low-Speed Devices:

   • In cases where extremely low power consumption is needed, and speed isn't a priority, RTL could be used in specialized applications, though in modern systems, more advanced logic families (like CMOS) are typically preferred due to their superior energy efficiency and speed

3. Retro Computing Projects:

   • Enthusiasts building retro or vintage computers might still encounter or replicate RTL circuits as part of restoring old hardware or experimenting with historical computer architectures.

Limitations of RTL:

• Speed: RTL circuits are relatively slow compared to modern logic families.
• Power Consumption: Higher than newer logic families like CMOS.
• Noise Margin: RTL circuits are more susceptible to noise, making them less reliable than other options.

In modern designs, you're much more likely to use logic families like TTL, CMOS, or even FPGA-based solutions, as they offer far greater speed, efficiency, and reliability than RTL.
