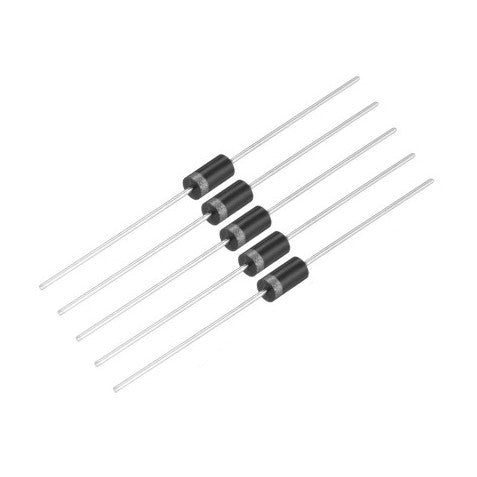

1N4004 Diodes (5 Pack)
1N4004 Diodes (5 Pack)
Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop
Regular price
£0.99
Regular price
Sale price
£0.99
Unit price
per
Shipping calculated at checkout.
Contact us for availabilityOrder Code: 02-265
The 1N4004G is an axial-leaded standard Recovery Rectifier with an epoxy moulded case- All external surfaces corrosion-resistant and terminal lead is readily solder-able finish. The diffused junction rectifier is suitable for general purpose and low-power applications-
Specifications
| Peak Reverse Voltage | 400V |
| Non−Repetitive Peak Reverse Voltage (halfwave, single phase, 60 Hz) | 480V |
| Maximum DC Blocking Voltage | 400V |
| RMS Reverse Voltage | 280V |
| Average Rectified Forward Current (single phase, resistive load, 60 Hz, TA = 75°C) | 1A |
| Non−Repetitive Peak Surge Current (surge applied at rated load conditions) | 30A (For One Cycle) |
| Maximum Instantaneous Forward Voltage Drop, (iF = 1.0 Amp, TJ = 25°C) | Typ 0.93V Max 1.1v |
| Maximum Full−Cycle Average Forward Voltage Drop, (IO = 1.0 Amp, TL = 75°C, 1 inch leads) | 0.8V Max |
| Operating Temperature | -65°C to + 175°C |
