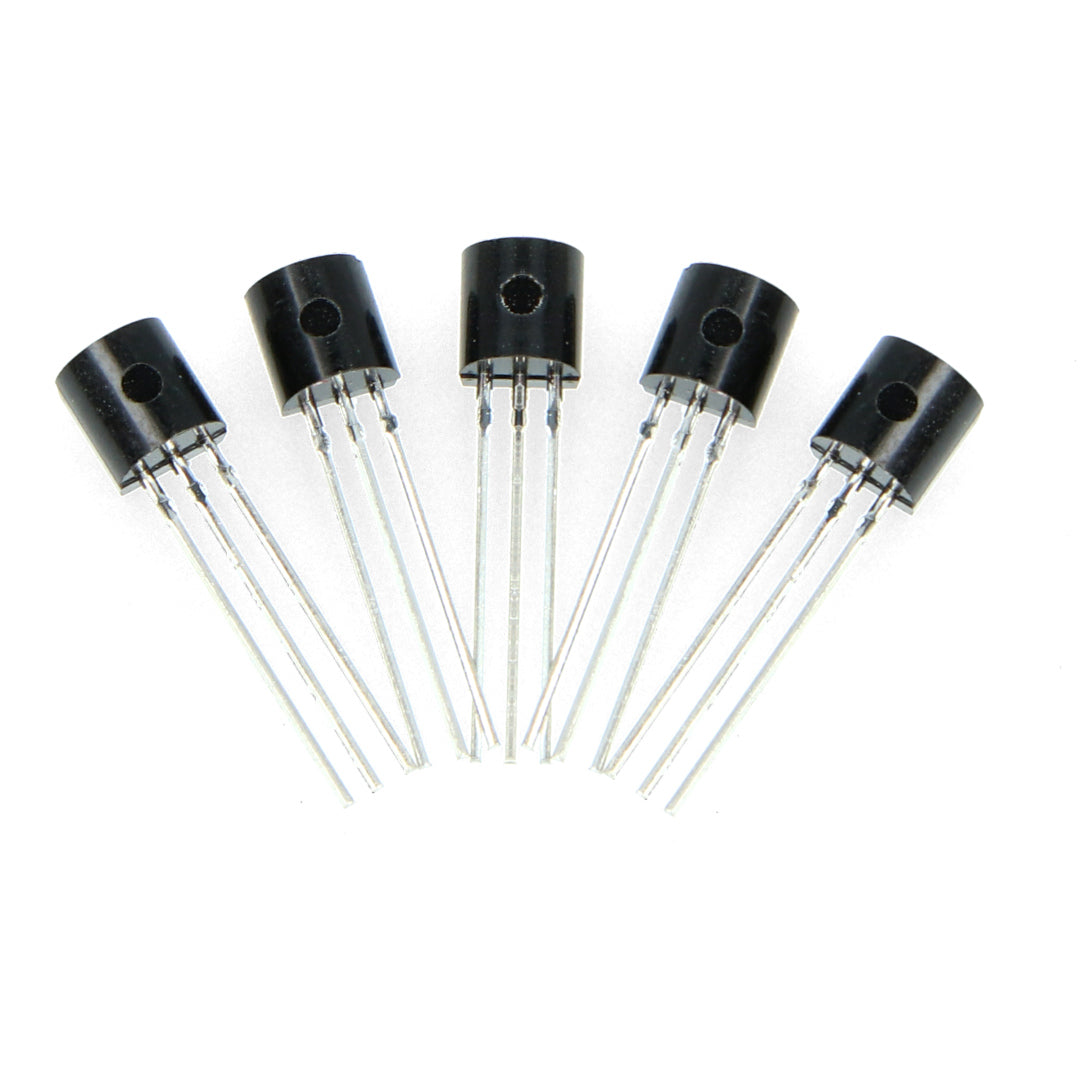

2N3904 NPN Transistor (5 Pack)
2N3904 NPN Transistor (5 Pack)
Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop
Regular price
£0.99
Regular price
Sale price
£0.99
Unit price
per
Shipping calculated at checkout.
Contact us for availabilityOrder Code: 02-112
The 2N3904 is a through hole, NPN general purpose transistor in TO-92 package, designed for amplifier and switch application. Dynamic range of device extends to 100mA while operating as switch and it will be 100MHz for amplifier.
Specifications
| Type | NPN |
| Collector Emitter Voltage Max: | 40V |
| Collector Base Voltage Max: | 60V |
| Emitter Base Voltage | 6V |
| Continuous Collector Current: | 200mA |
| Power Dissipation: | 625mW |
| DC Current Gain hFE Min | 100hFE |
| Dynamic Range | 100mA |
| Derate Above 25°C | 5.0mW/°C |
| Thermal Resistance, Junction To Case | 83.3°C/W |
| Thermal Resistance, Junction To Ambient | 200°C/W |
| Transition Frequency | 100MHz |
| Operating Temperature | -55°C to 150°C |
| Pins | 3 |
| Mounting | Through Hole |
| Casing | TO-92 |
