2N3906 PNP Transistor (5 Pack)
2N3906 PNP Transistor (5 Pack)
Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop
Regular price
£0.99
Regular price
Sale price
£0.99
Unit price
per
Shipping calculated at checkout.
Contact us for availabilityOrder Code: 02-116

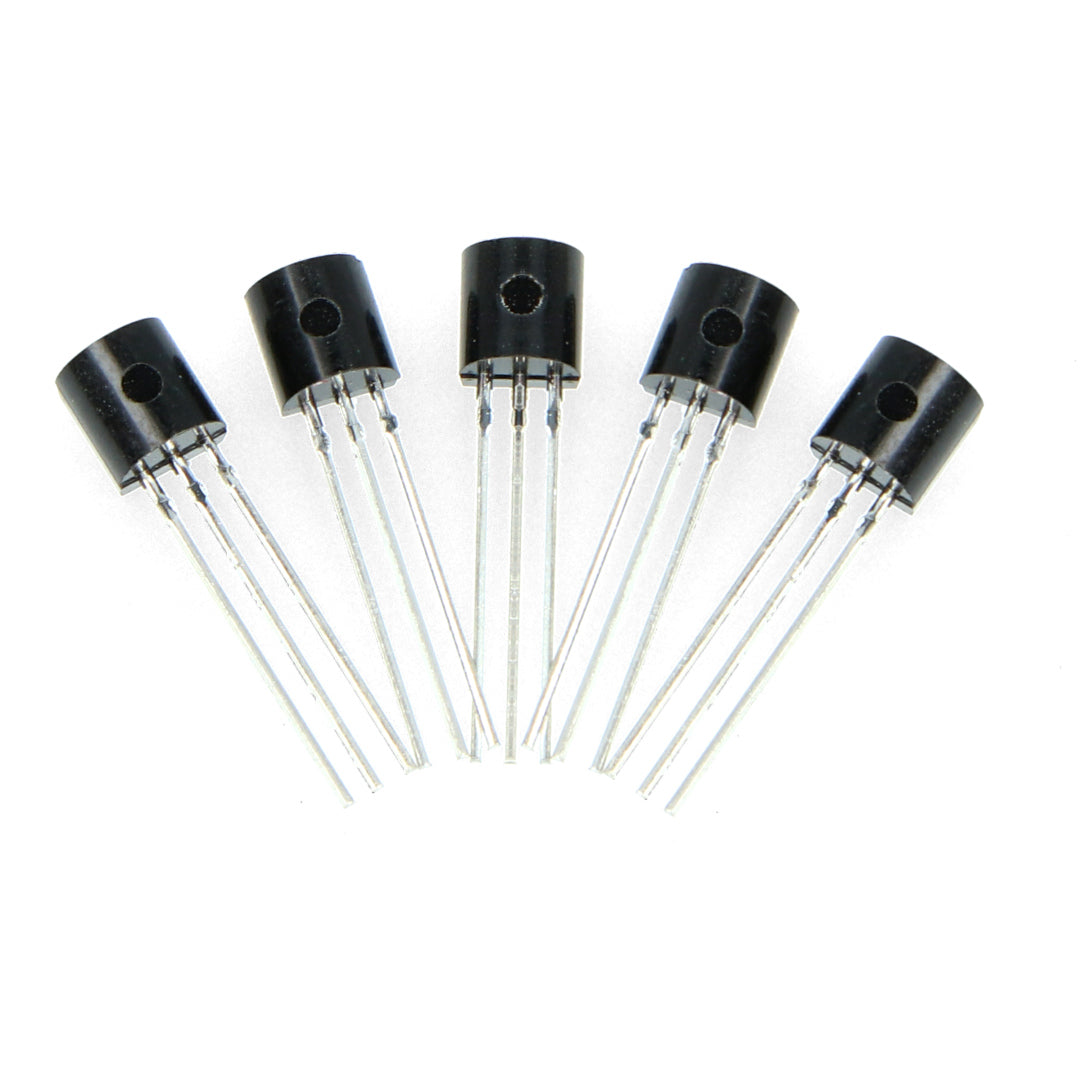

The 2N3906 is a through hole, PNP low power, silicon planar switching transistors in TO-92 metal can package. Fast switching, suitable for switching and amplification.
Specifications
| Type | PNP |
| Collector Emitter Voltage Max: | 40V |
| Collector Base Voltage Max: | 40V |
| Emitter Base Voltage | 5V |
| Continuous Collector Current: | 200mA |
| Power Dissipation: | 625mW |
| DC Current Gain hFE Min | 100hFE |
| Derate Above 25°C | 12mW/°C |
| Thermal Resistance, Junction To Case | 125°C/W |
| Thermal Resistance, Junction To Ambient | 200°C/W |
| Transition Frequency | 250MHz |
| Operating Temperature | -55°C to 150°C |
| Pins | 3 |
| Mounting | Through Hole |
| Casing | TO-92 |
