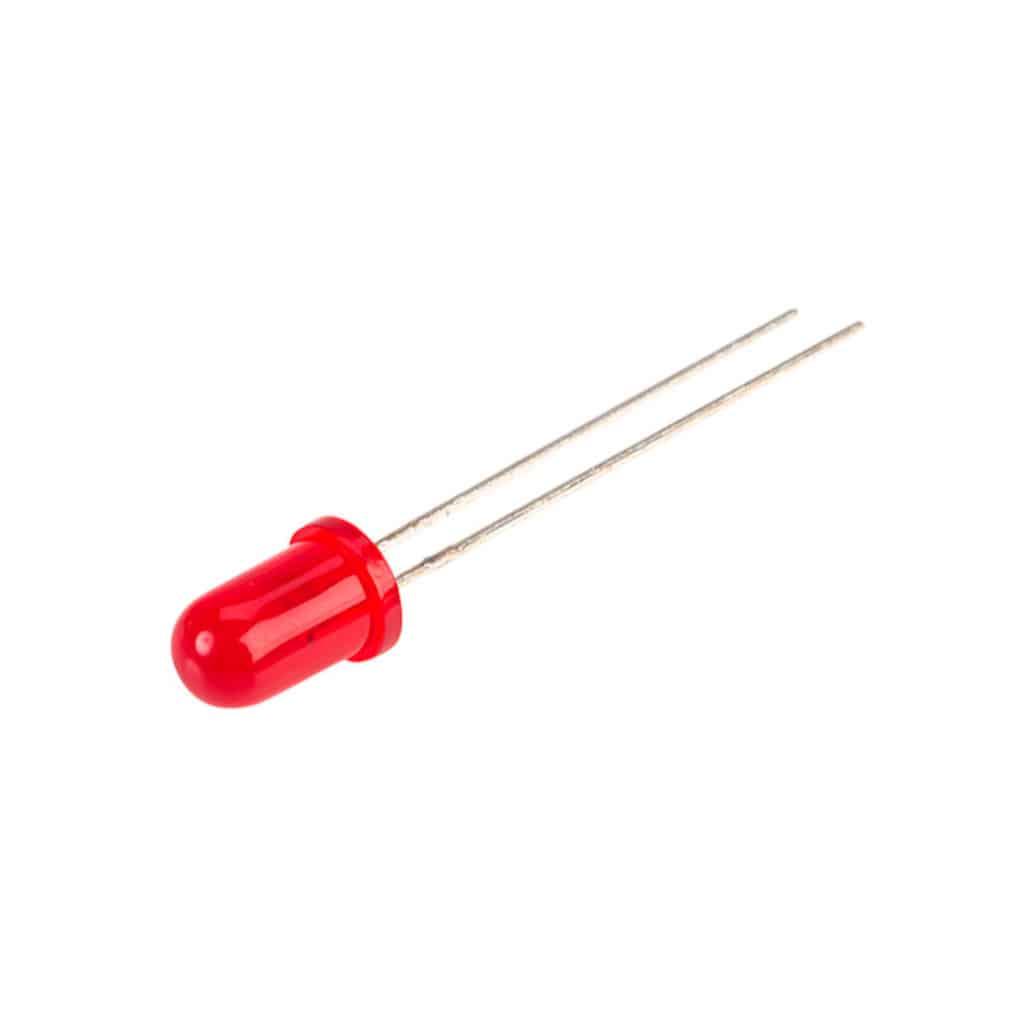

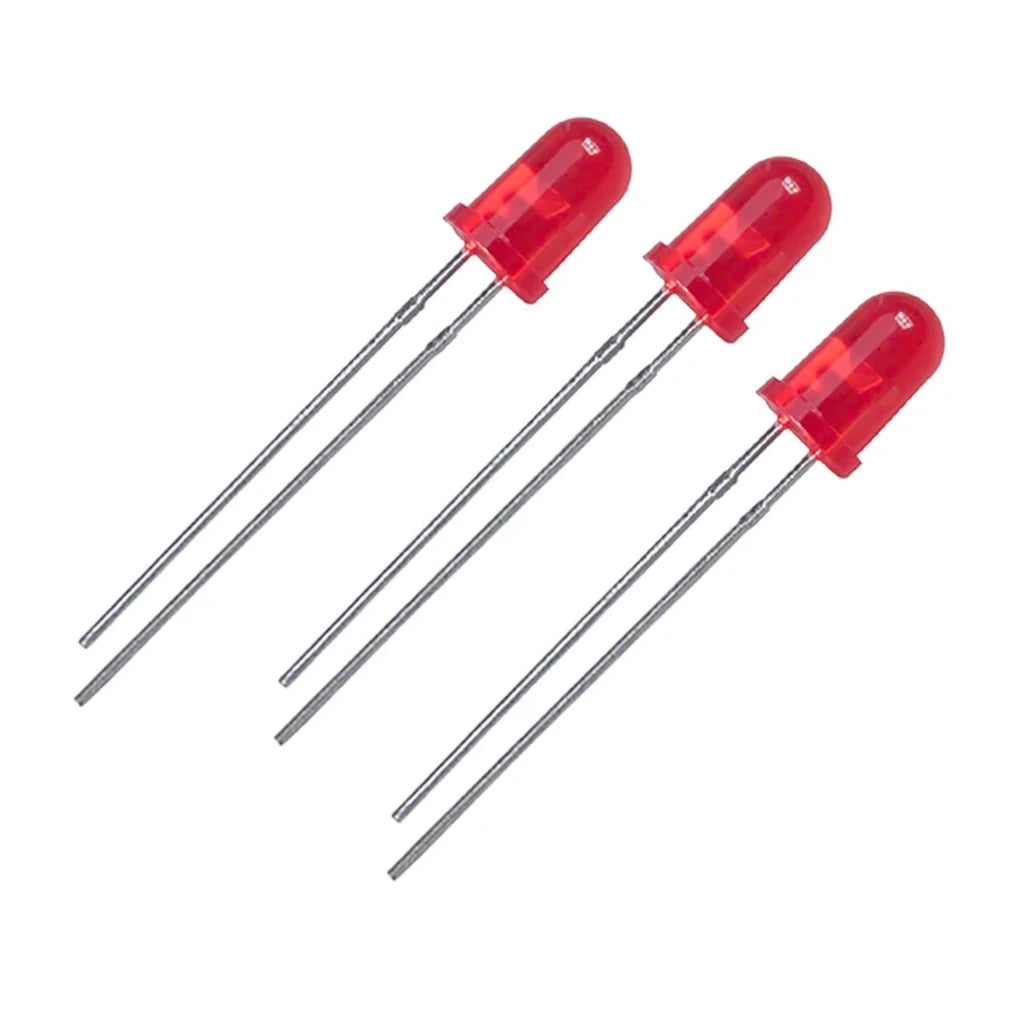

5mm 2.2V Red LEDs (3 Pack)
5mm 2.2V Red LEDs (3 Pack)
Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop
Regular price
£1.99
Regular price
Sale price
£1.99
Unit price
per
Shipping calculated at checkout.
Contact us for availabilityOrder Code: 04-197
Specifications
| Colour / Type | Red Diffused |
| Size | 5mm |
| Forward Voltage Minimum | 2.2V |
| Forward Voltage Maximum | 2.8V |
| Reverse Voltage | 5V |
| Forward Current | 15mA |
| DC Reverse Current | 30µA |
| Pulse forward current | 50 mA Pulse width max. 10ms. Duty ratio max. 1/10 |
| Power dissipation | 45 mW |
| Brightness | 10mcd |
| Viewing Angle | 60° |
| Wavelength | 700nm |
| Working Temperature | -40°C to +95°C |
