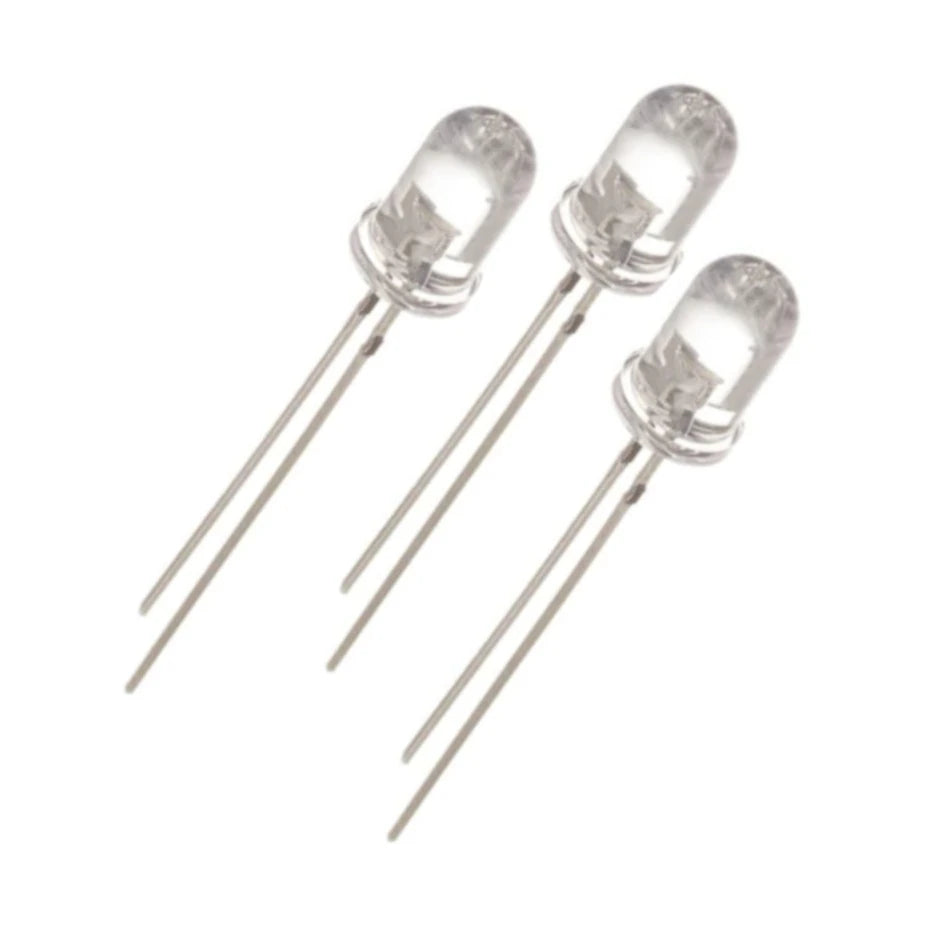

5mm 3.1V White LEDs (3 Pack)

5mm 3.1V White LEDs (3 Pack)

Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop

£2.49
£2.49
Sale Sold out
Shipping calculated at checkout.
Contact us for availability
Order Code: 04-032

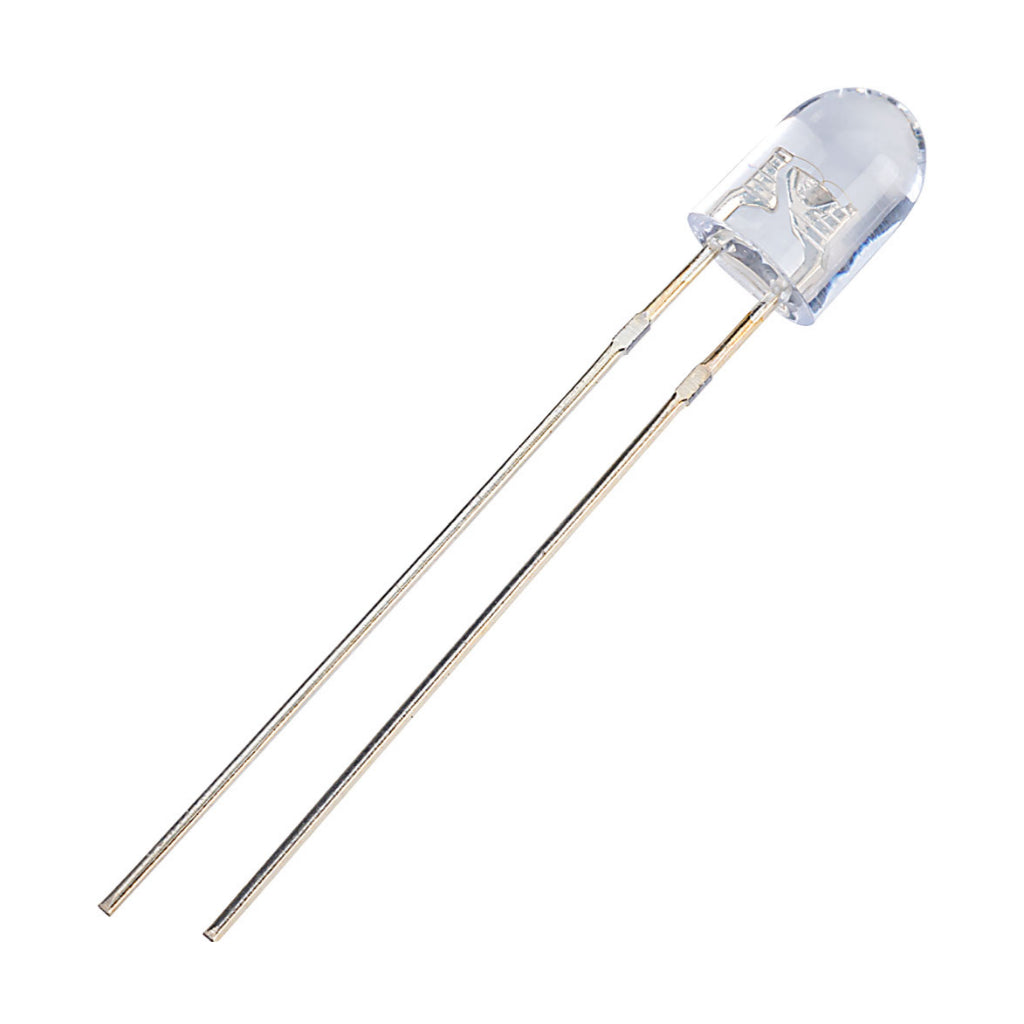

5mm 3.1V 4200mcd white oval LED with a clear lens, suited to applications such as: traffic signals and portable light sources, signage and channel lettering, decorating and entertainment lighting, architectural lighting, small area illumination and back lighting.

Specifications
Colour / TypeWhite Clear
Size5mm
Forward Voltage Minimum2.9V
Forward Voltage Maximum3.6V
Reverse Voltage5V
Forward Current30mA
DC Reverse Current10uA
Pulse forward current100 mA Pulse width max. 10ms. Duty ratio max. 1/10
Power dissipation108 mW
Brightness4200mcd
Viewing Angle100°
Wavelength0.27/0.28nm
Working Temperature-30°C to +85°C
