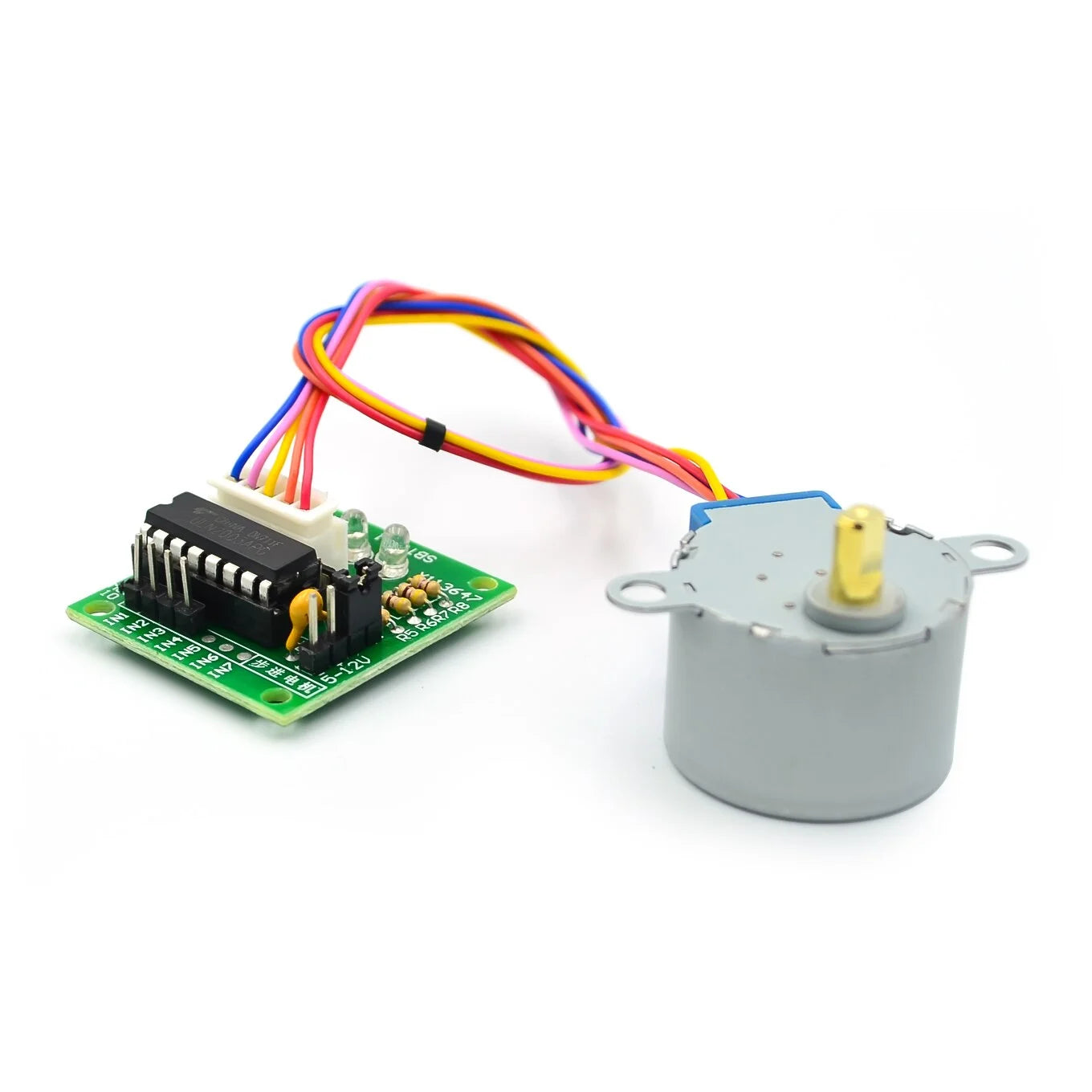

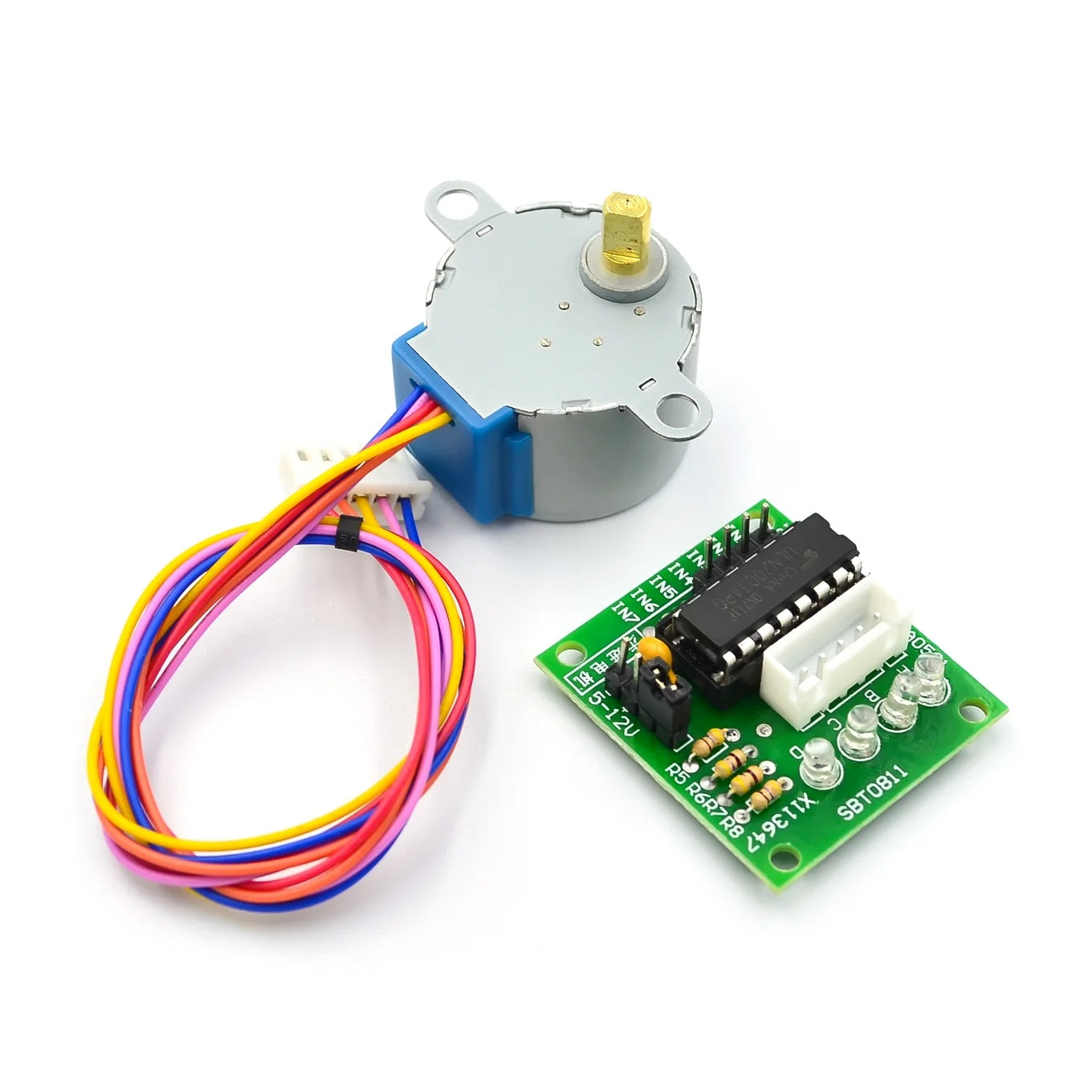

5V 4-Phase Geared Stepper Motor 28BYJ-48 with ULN2003 Driver

Elevate your electronic projects with our precision-engineered 5V 4-Phase Geared Stepper Motor combined with the ULN2003 Driver. Designed to offer seamless integration with Arduino test modules, this set ensures high performance while maintaining a whisper-quiet operational sound. With its visual LED indicators and standard interface, it’s an effortless plug-and-play experience.

5V 4-Phase Geared Stepper Motor 28BYJ-48 +ULN2003 Driver Features:

High Compatibility:

• Designed explicitly for Arduino, ensuring hassle-free integration.
• Stepper motor comes with a standard interface for direct insertion.

• LED Phase Indicators:
  • A, B, C, D four-phase LEDs allow users to monitor the stepper motor’s working state at a glance.
• Silent Operation:
  • Engineered to operate with minimal noise, ensuring a quiet environment. Noise levels are maintained below 40dB even at higher frequencies.

Specifications:

• Voltage & Phase:
  • Rated voltage at DC5V with a 4-phase operation.
• Step Precision:
  • Features a step angle of 5.625 x 1/64 for accurate movements.
• Performance Metrics:
  • No-load absorption frequency of >600Hz and extraction frequency of >1000Hz.
  • Impressive pulling torque of >34.3mN.m at 120Hz.
  • Reliable stop torque of >34.3MN.m.
  • DC resistance set at 200Ω±7% (at 25C).
• Safety First:
  • Ensures insulation resistance of >10MΩ with a 500V rating.
  • Dielectric strength stands at 600V AC for 1mA over 1 second.
• Temperature & Noise Management:
  • Ensures temperature rises are kept under 40K at 120Hz.
  • Operates below 40dB noise level at 120Hz when there’s no load and at a 10cm distance.

In the Box:

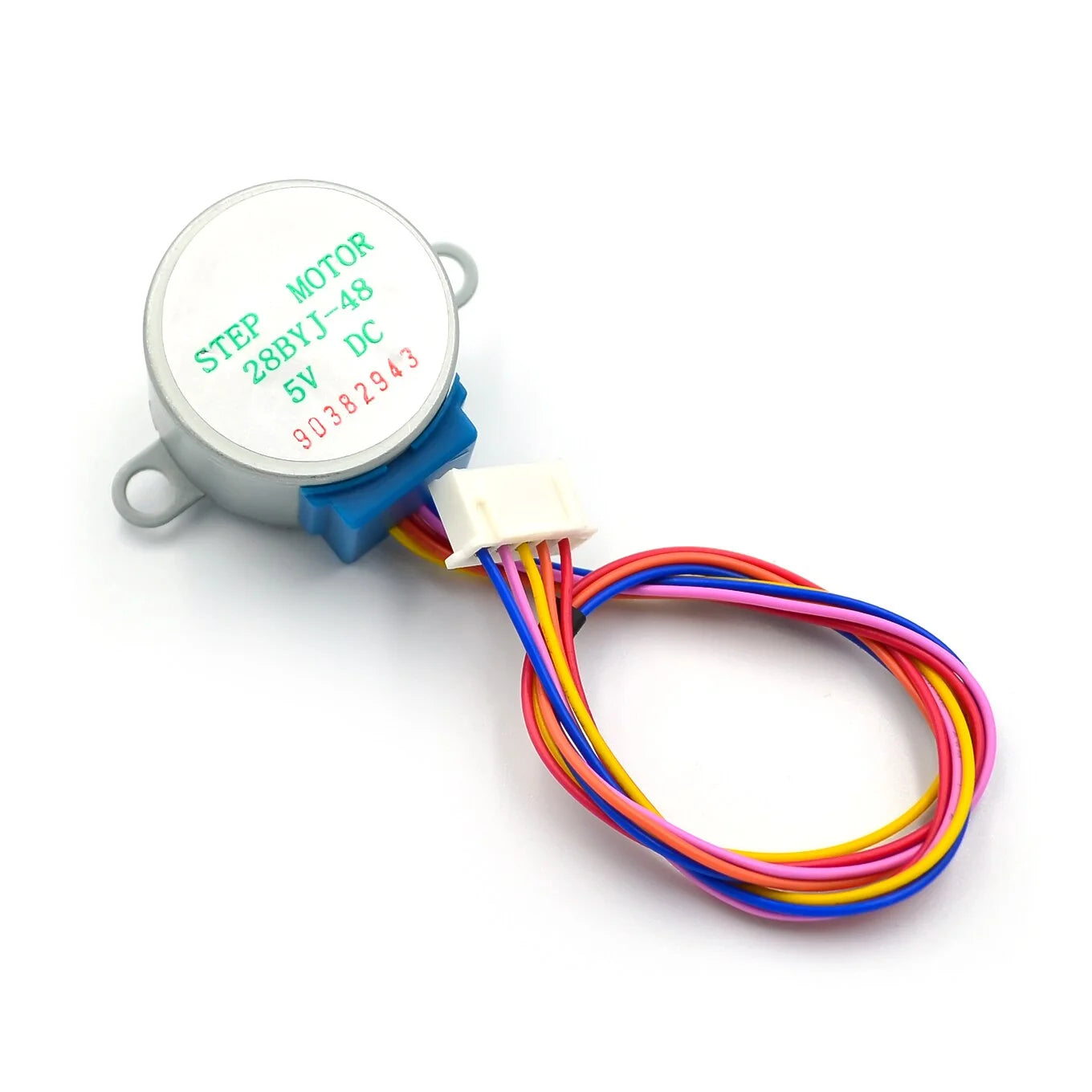

• 1 x 28BYJ-48 Stepper Motor for precision movement.

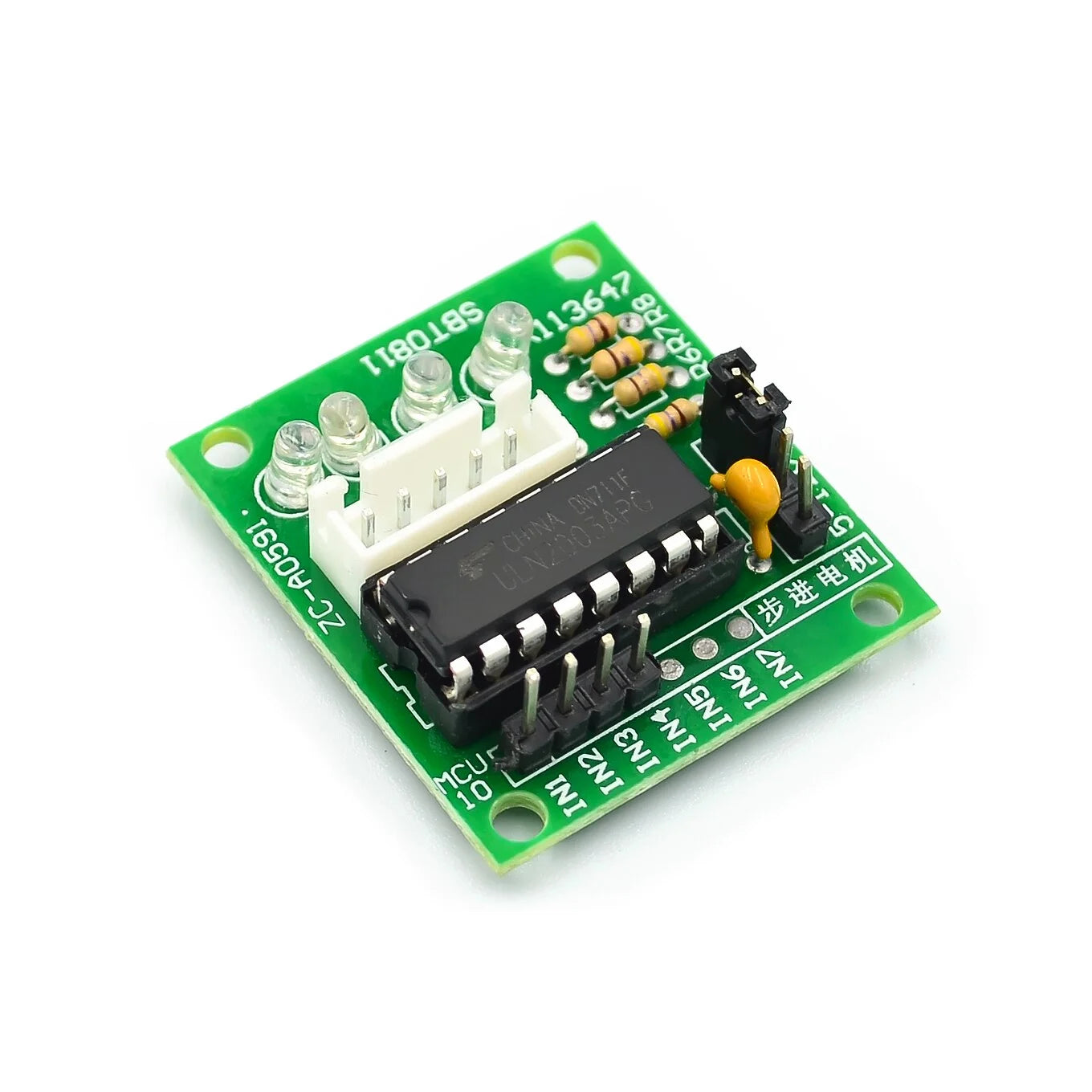

• 1 x ULN2003 Motor Driver Board for effective control and performance.
