5 Volt DC, 10A, SPST Relay
5 Volt DC, 10A, SPST Relay
Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop
Regular price
£2.09
Regular price
Sale price
£2.09
Unit price
per
Shipping calculated at checkout.
Contact us for availabilityOrder Code: 04-151

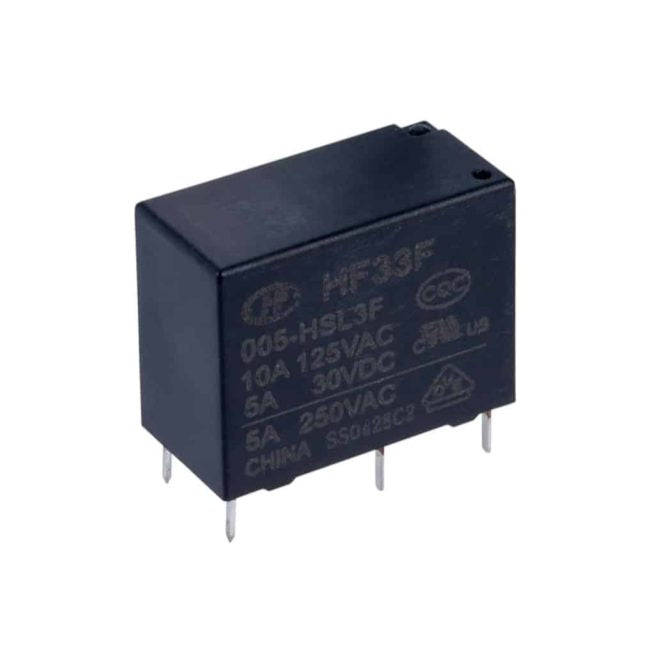

10A subminiature intermediate power relay that is designed for PCB mounting. The relay has a sensitive 5V DC coil and a SPST-NO contact configuration.
Specifications
| Coil Voltage (DC) | 5V |
| Switching Voltage Max (AC) | 250V |
| Switching Voltage Max (DC) | 30V |
| Switching Current Max | 10A |
| Contacts | SPST-NO |
| Switching Power | 1250VA |
| Coil Resistance | 125Ω |
| Operating Temperature | -40 to +70°C |
| Mounting | PCB |
| Dimensions (LxWxH) | 20.5mm x 10.2mm x 15.3mm |
