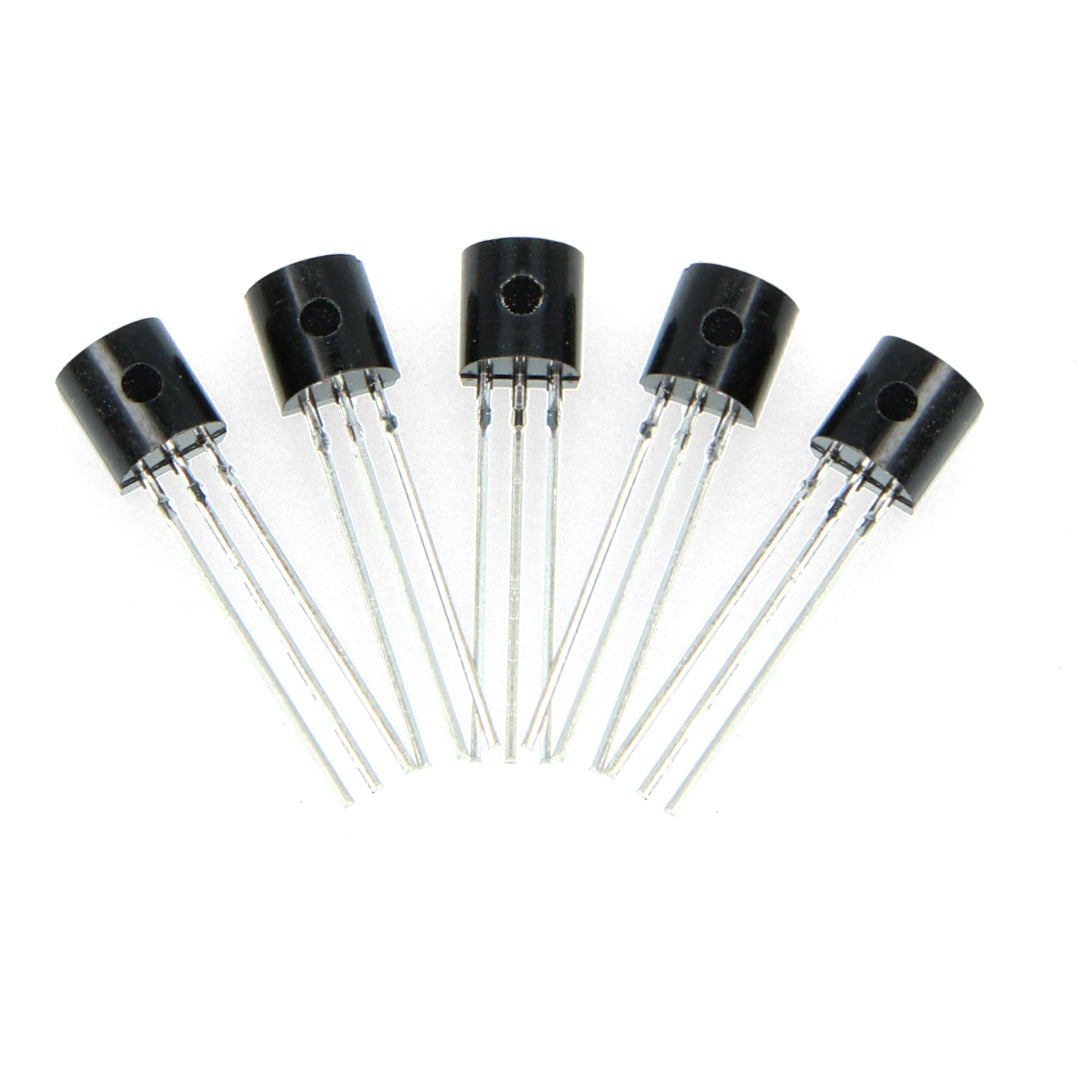

• BC327-16 PNP Transistor (5 Pack)
1 1

BC327-16 PNP Transistor (5 Pack)

BC327-16 PNP Transistor (5 Pack)

Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop

£2.29
£2.29
Sale Sold out
Shipping calculated at checkout.
Contact us for availability
Order Code: 04-053

General purpose PNP BC327-16 epitaxial planar transistor with a VCE of 50V and an IC of 800mA.

Specifications
TypePNP
Collector Emitter Voltage Max:B Open 45V
E-B Short 50V
Collector Base Capacitance12 pF
Emitter Base Voltage5V
Continuous Collector Current:800mA
Power Dissipation:625mW
DC Current Gain hFE Min100hFE
Thermal Resistance, Junction To Ambient200C/W
Transition Frequency100MHz
Operating Temperature-55°C to 150°C
Pins3
MountingThrough Hole
CasingTO-92
