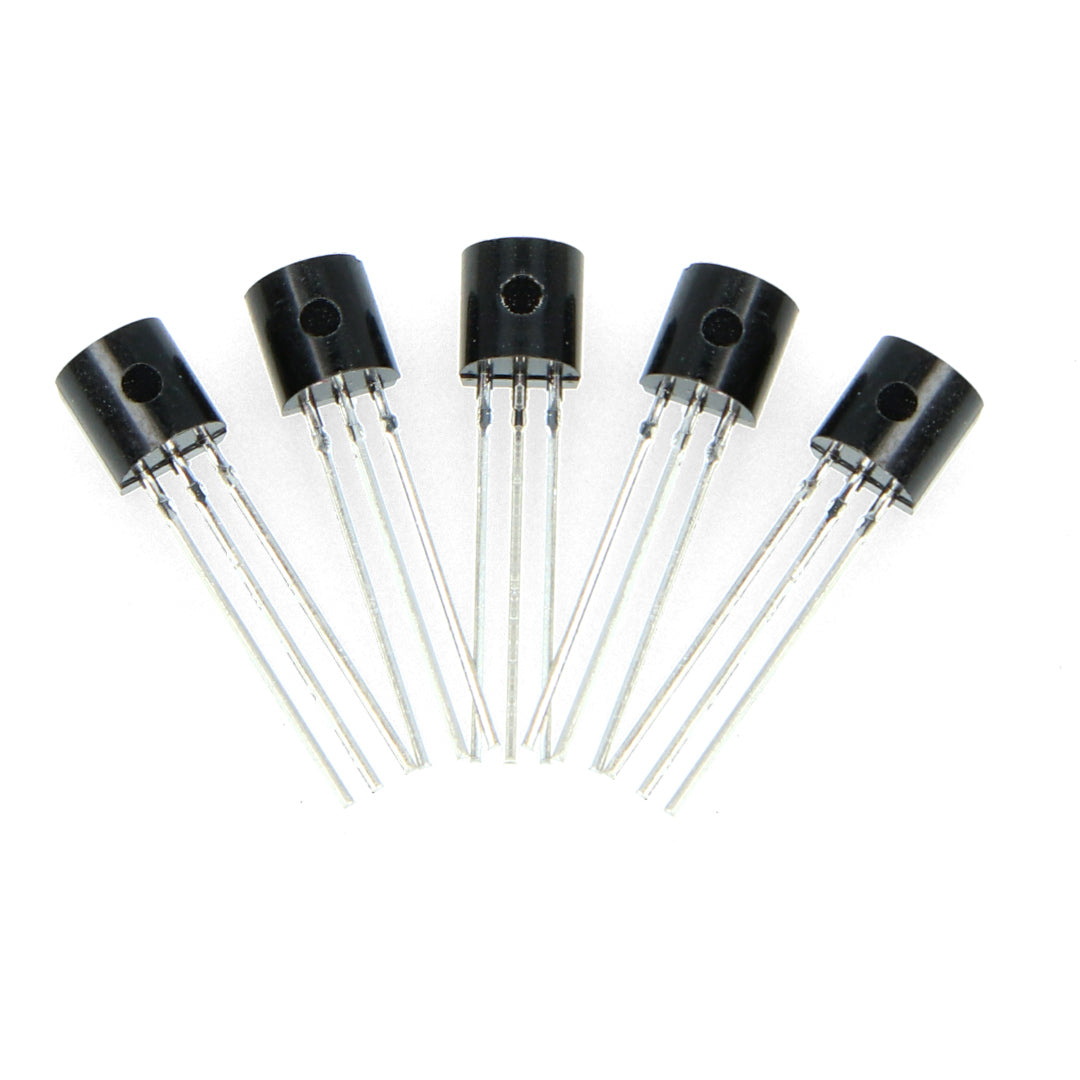

BC635 NPN Transistor (5 Pack)
BC635 NPN Transistor (5 Pack)
Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop
Regular price
£1.99
Regular price
Sale price
£1.99
Unit price
per
Shipping calculated at checkout.
Contact us for availabilityOrder Code: 02-114
The BC635 is a high performance NPN silicon planar epitaxial medium power Bipolar Transistor, low frequency devices typically with current ratings 1A up to 1W power dissipation.
Specifications
| Type | NPN |
| Collector Emitter Voltage Max: | 45V |
| Collector Base Voltage Max: | 45V |
| Emitter Base Voltage | 5V |
| Continuous Collector Current: | 1A |
| Power Dissipation: | 800mW |
| DC Current Gain hFE Min | 100hFE |
| Thermal Resistance, Junction To Case | 45°C/W |
| Thermal Resistance, Junction To Ambient | 156°C/W |
| Transition Frequency | 200MHz |
| Operating Temperature | -55°C to 150°C |
| Pins | 3 |
| Mounting | Through Hole |
| Casing | TO-92 |
