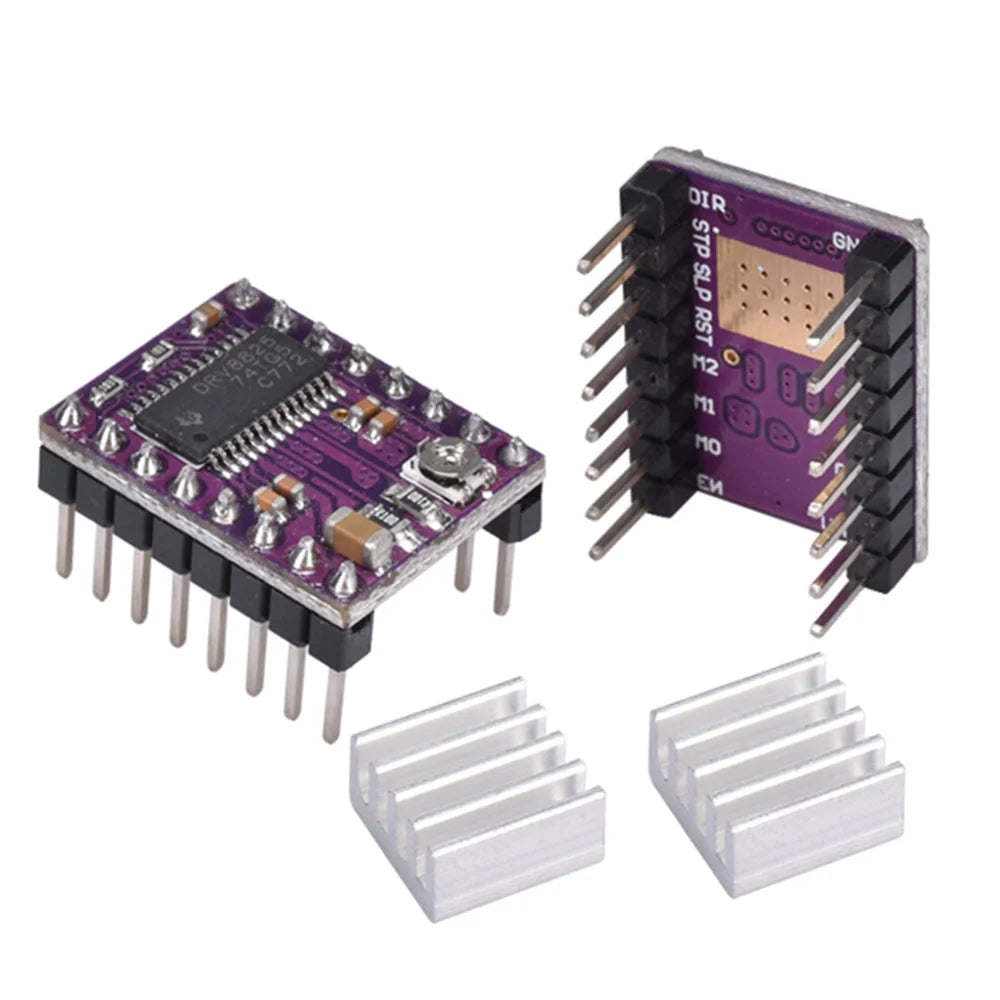

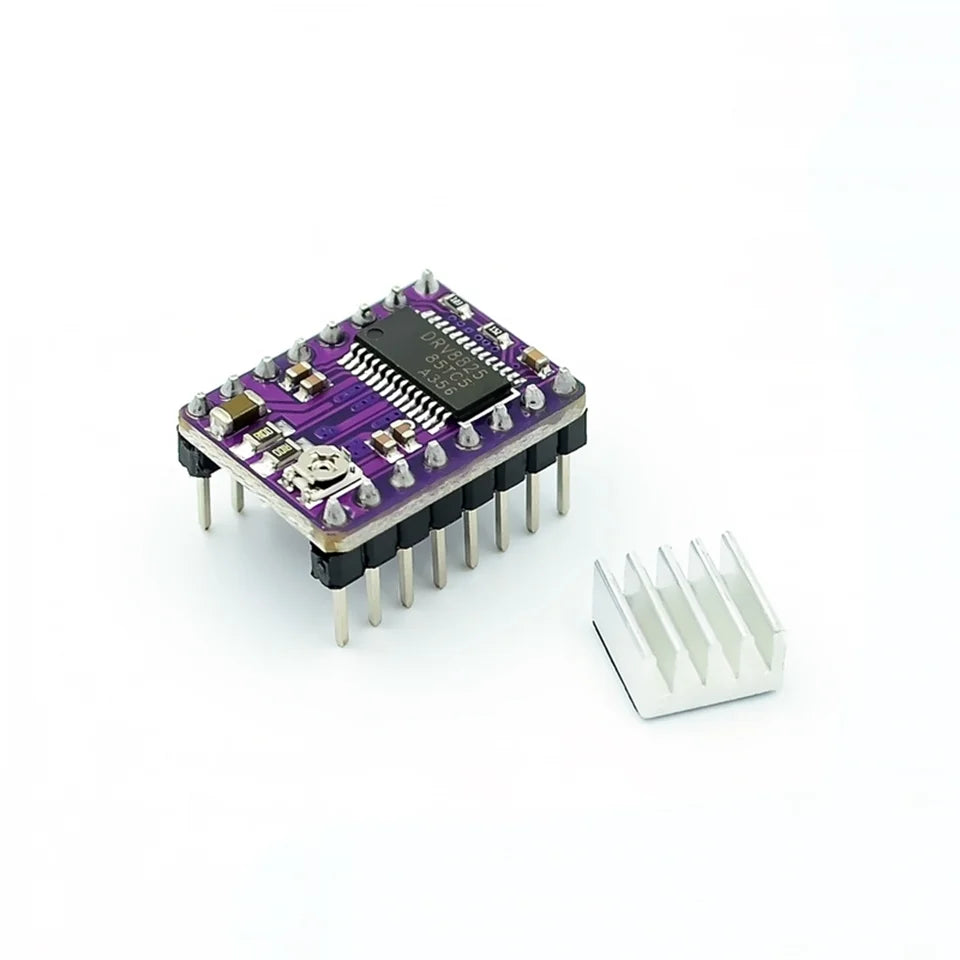

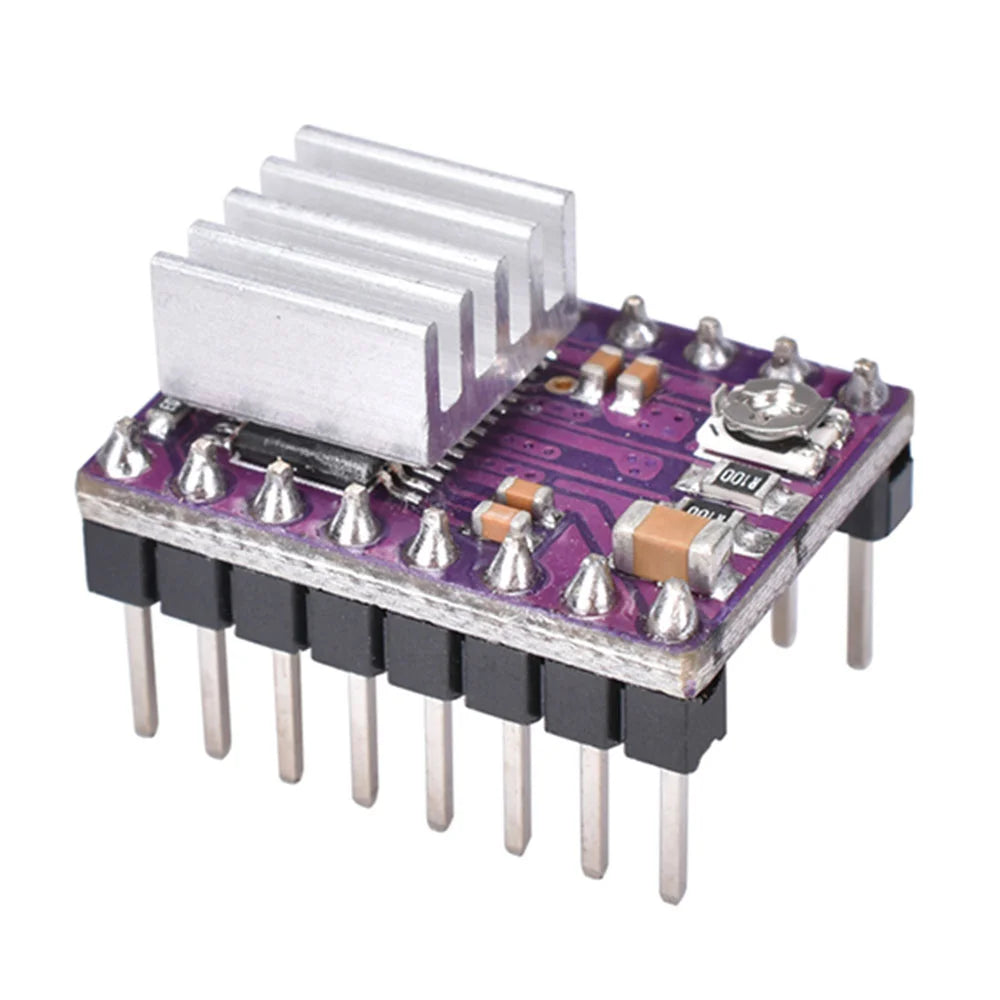

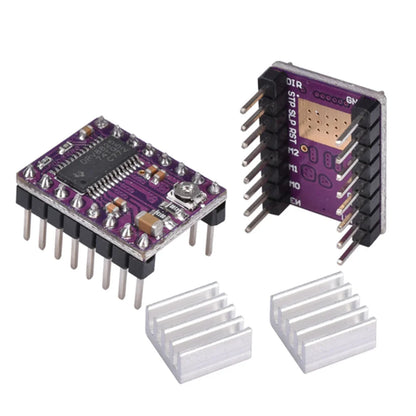

DRV8825 Stepper Motor Driver With Heatsink

• All-Integrated Solution: Masterfully designed for bipolar stepper motors, handling up to 2.5A per coil with a staggering ceiling of 45V.
• Adaptable Microstep Resolutions: Flexibility at its best! Choose from six resolutions – full, 1/2, 1/4, 1/8, 1/16, and 1/32 – to finely tune your motor control.
• Safety as Priority: Armed with features like overcurrent and overtemperature protection. The adjustable current limiting further ensures your projects are always shielded from harm.
• A Market Favourite: Gained widespread acclaim in the realms of CNC plotting, milling, and the dynamic world of 3D printing.

Simplified Arduino Integration with DRV8825 Stepper Motor:

1. Motor Setup: Seamlessly connect your stepper motor’s two coils to the driver’s dual output channels.
2. Power Arrangements: Ensure adherence to your motor’s voltage and current specifications. Use VMOT for voltage input and VDD for the logical facet.
3. Arduino Connectivity: Integrate the DRV8825 effortlessly with your Arduino, linking pins such as STEP, DIR, ENABLE, MS1, MS2, and MS3.
4. Programming Guide: Craft an Arduino-centric program, directing signals to the DRV8825. Control aspects like movement, direction, and desired microstep resolution with ease.

Perfect Match For:

• Precision-driven stepper motor applications.
• Integral components of 3D printers, CNC machinery, intricate engraving ventures, and much more.
• Users keen on driving motors directly using our detailed Arduino code reference.

In-depth DRV8825 Attributes:

• Voltage range: An impressive 8.2V to 45V, pushing 2.5A.
• Clear-cut step-direction control mechanism.
• Multiple stepping regimens: full, half, 1/4, 1/8, 1/16, 1/32.
• An intuitive potentiometer to adjust the peak current, optimizing step rates.
• Innovative auto current decay mode identification & choice.
• Comprehensive safety suite: Overheating shutdowns, under voltage lockouts, cross-current defence, and guards against ground/load short circuits.
