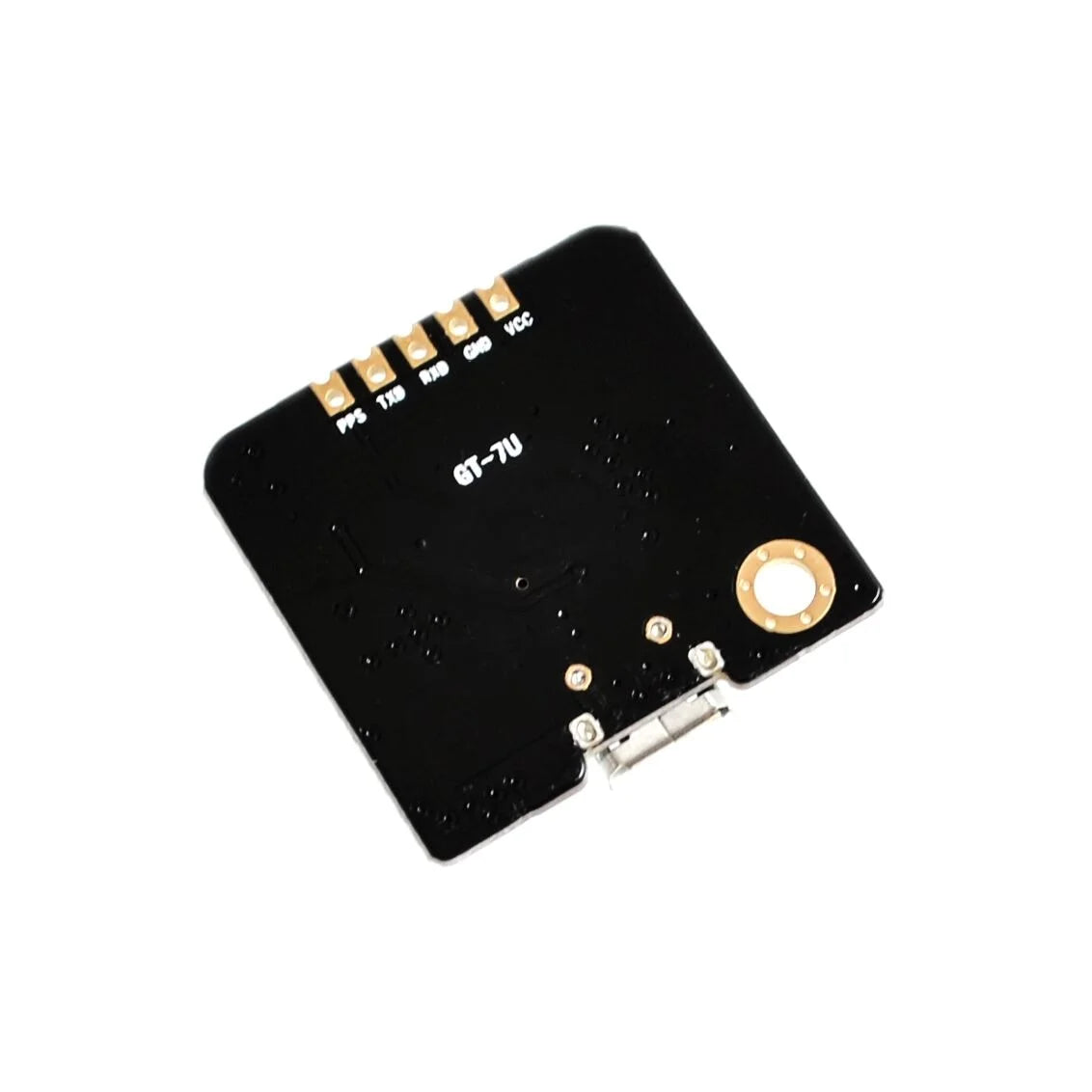

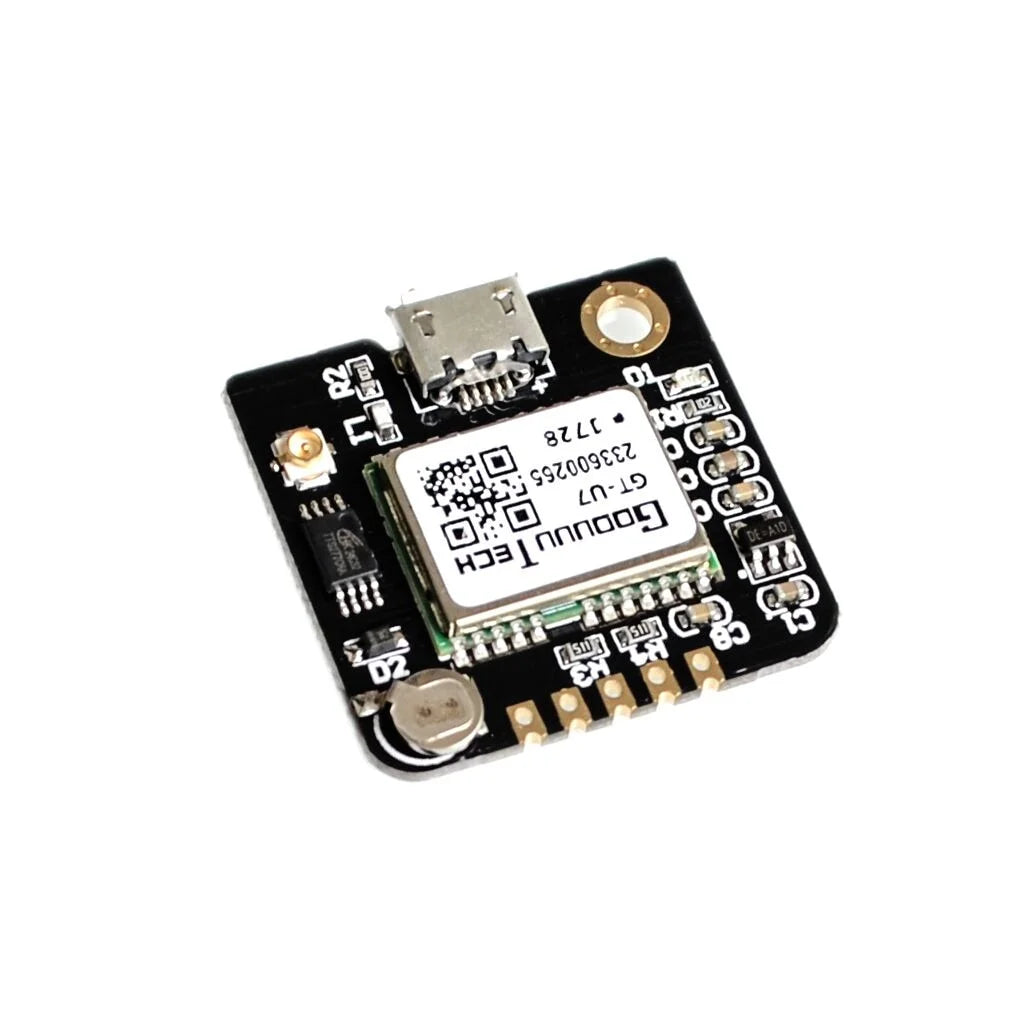

GT-U7 GPS Module External USB Satellite Positioning

GT-U7 GPS Module Features:

• Cutting-Edge Tech: Uses the state-of-the-art 7th generation chip, offering compatibility with NEO-6M software.
• USB Integration: Simply plug in using a phone data cable to view positioning. No external serial module required!
• Active Antenna Support: Equipped with an IPX interface for active antenna connection, boosting precision.
• Exceptional Sensitivity: The GT-U7 module promises high sensitivity, low power consumption, and minimised static drift.
• Adaptable Precision: Even in challenging environments like narrow city streets or dense jungles, the GT-U7 ensures high-accuracy positioning.

Specifications of GT-U7 GPS Module:

• Antenna: Comes with an IPEX antenna interface and a default active antenna for rapid positioning.
• Power: Versatile with an operating voltage of 3.6V-5V, or simply power directly via USB.
• Data Rate: Operates at a baud rate of 9600 (modifiable).
• Onboard Features: Includes a rechargeable button battery and E2PROM for saving parameter data.
• Compatibility: NEMA output format aligns with NEO-6M.
• Compact Design: Sized at 27.6mm * 26.6mm, offering flexibility for insertion or patch options.

Where Can You Use GT-U7?

• On The Move: Perfect for vehicles and mobile positioning systems.
• Handheld Precision: Great for PDAs and other handheld gadgets.
• Monitor On the Go: Ideal for vehicle monitoring.
• Modern Mobility: A boon for shared bikes and mobile power banks.

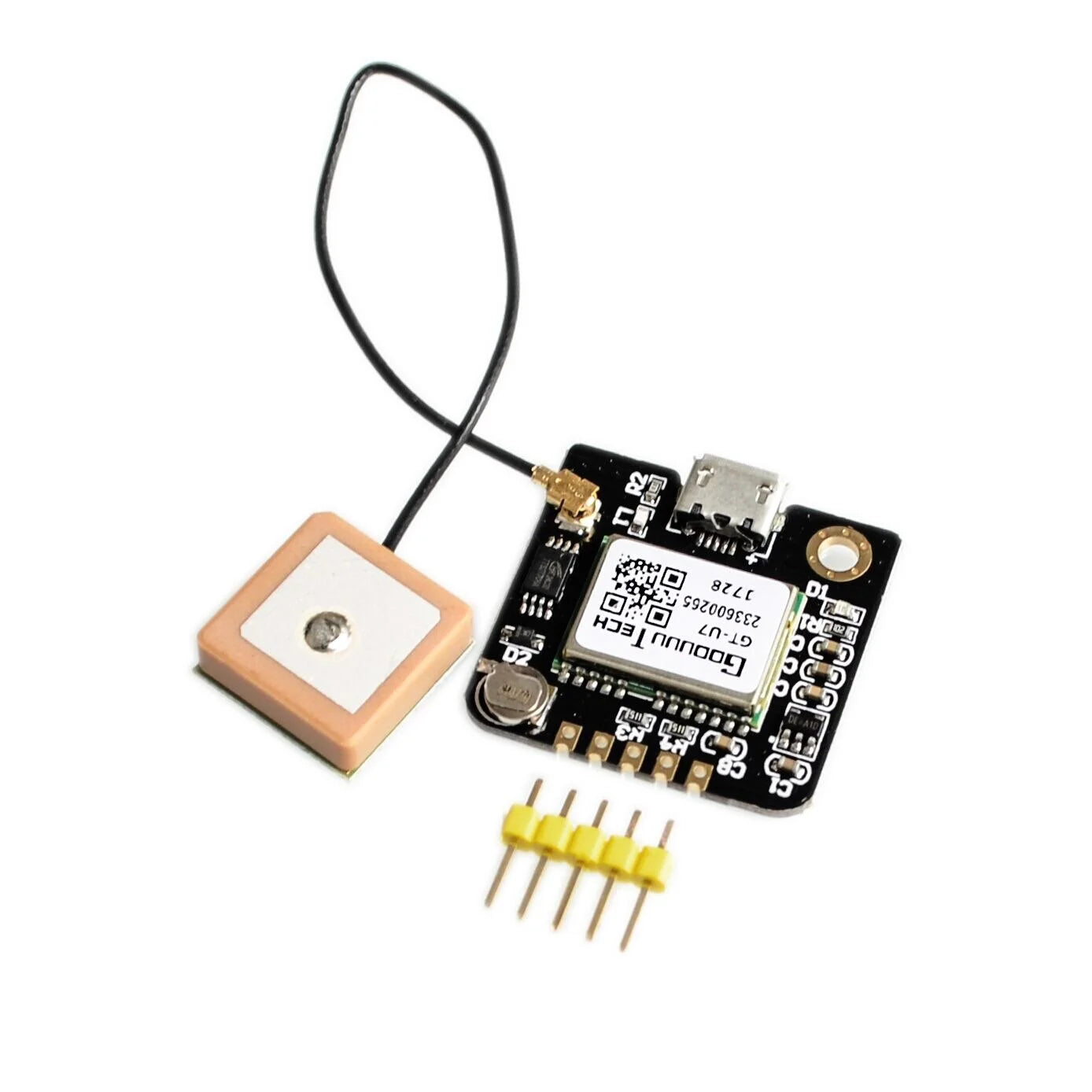

Box Contents:

• 1 * GT-U7 GPS Module
• 1 * IPX antenna
