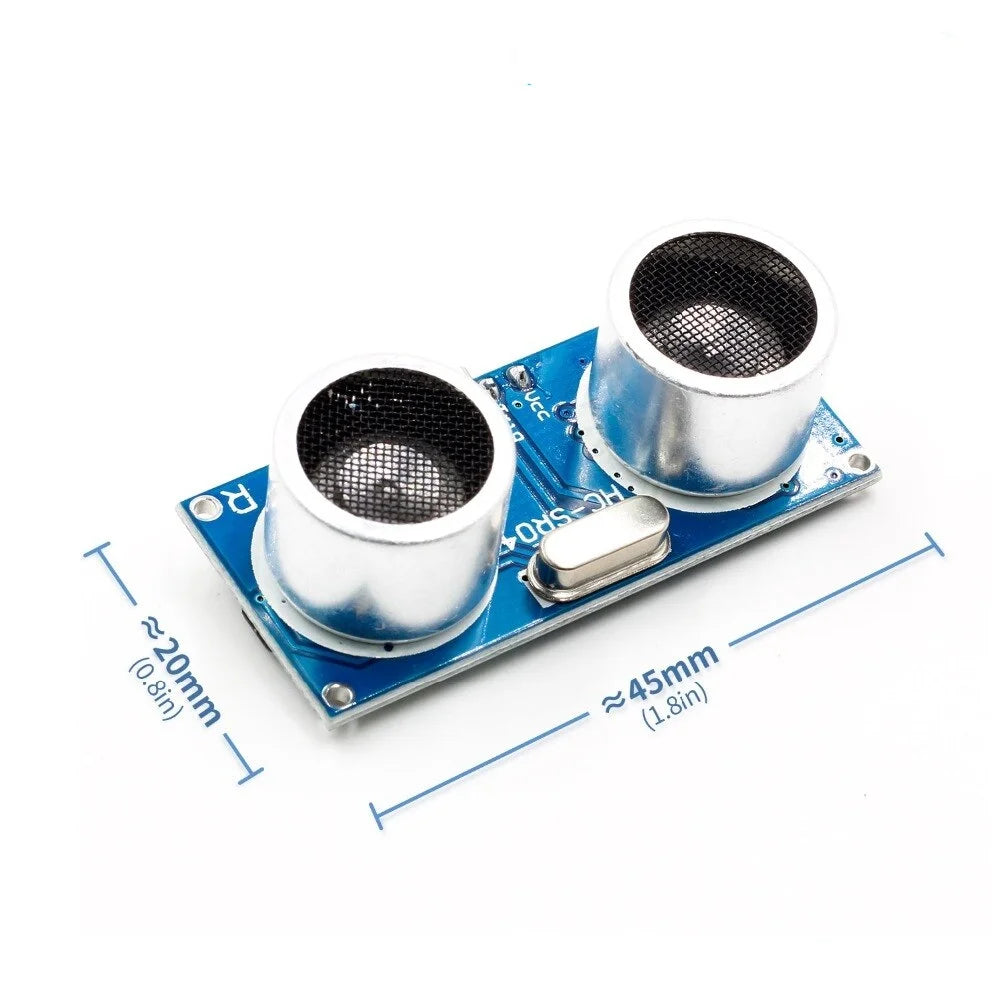

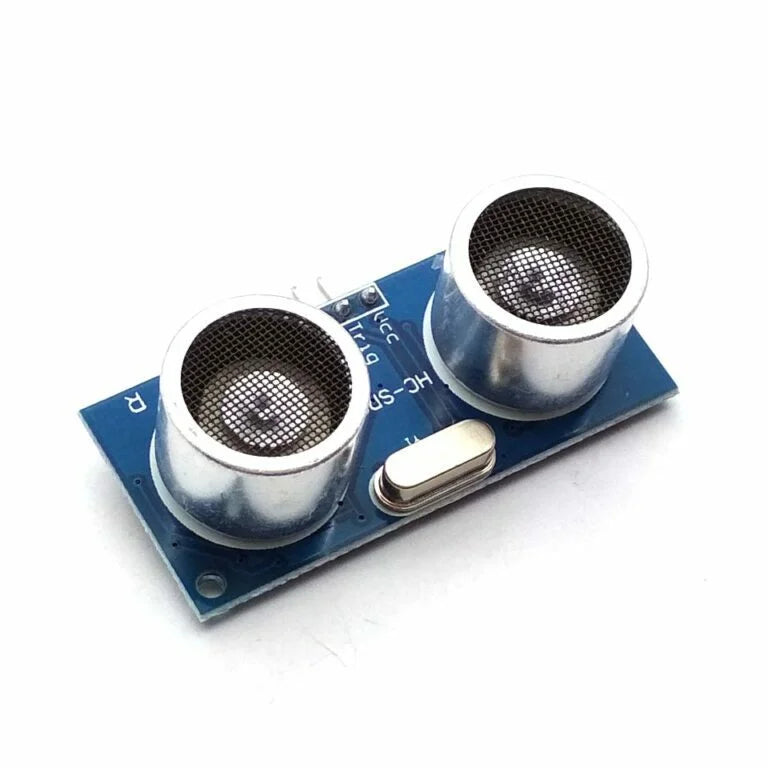

Ultrasonic Sensor Arduino Distance Measuring Sensor HC-SR04

Elevate your electronic ventures with the HC-SR04 Ultrasonic Sensor for Arduino. Engineered for precision and versatility, this sensor is the perfect companion for robotics, automation, and a myriad of DIY endeavours.

HC-SR04 Ultrasonic Sensor Arduino Key Features:

• Precision Distance Measurement: Harness the power of ultrasonic sound waves for accurate distance measurements up to 4 meters with a remarkable 3mm accuracy.
• Real-time Obstacle Detection: Ideal for collision avoidance, robotic navigation, and security setups, thanks to its rapid response and broad detection angle.
• Seamless Integration: With a straightforward interface requiring just four connections, integrating the HC-SR04 into your projects is a breeze.
• Universal Compatibility: Whether you’re team Arduino, Raspberry Pi, or any other microcontroller platform, the HC-SR04 is ready to fit right in.
• Diverse Applications: From smart homes and robotics to industrial distance measurements, this sensor’s adaptability shines in varied scenarios.
• Compact & Robust: Designed for longevity, its compact form ensures easy integration, while its sturdy components promise durability.

HC-SR04 Ultrasonic Sensor Arduino Technical Specifications:

• Voltage: DC 5V
• Static Current: < 2mA
• Output (High): 5V
• Output (Low): 0V
• Induction Angle: ≤ 15 degrees
• Detection Range: 2cm-450cm
• Precision: 2mm

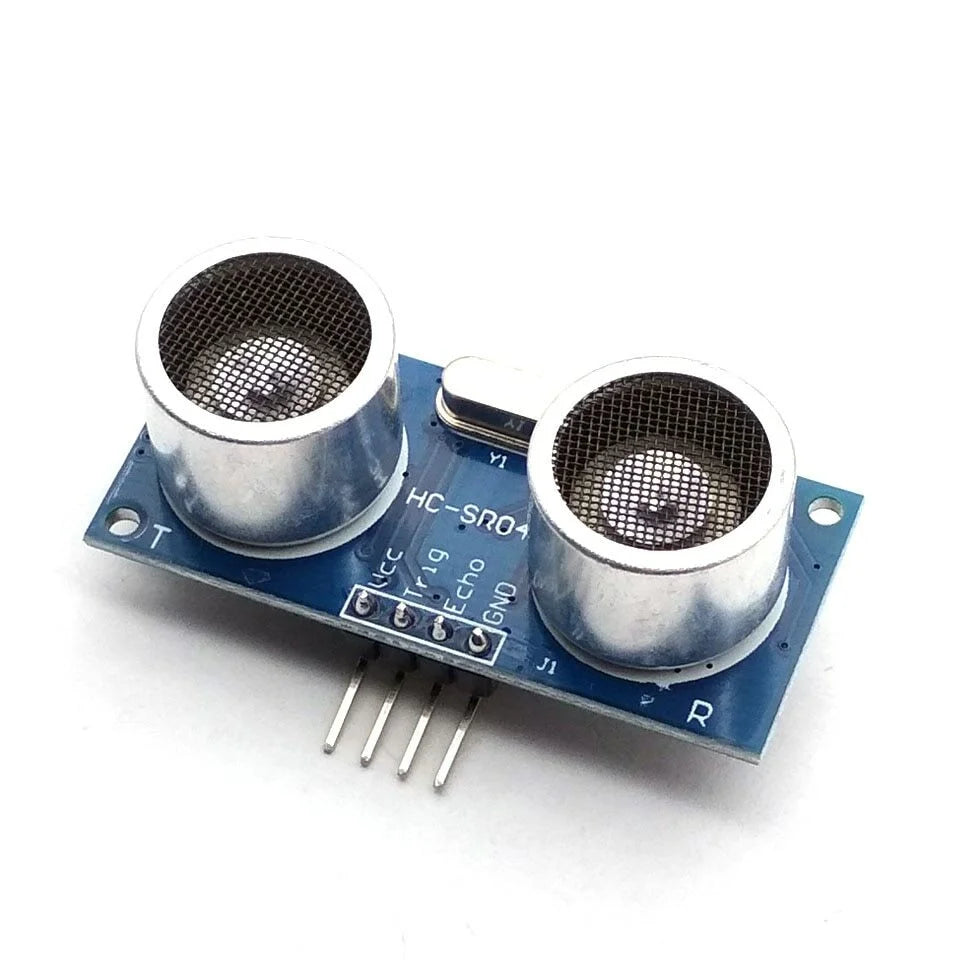

• Wiring Ports: VCC, Trig (Control), Echo (Receive), GND
