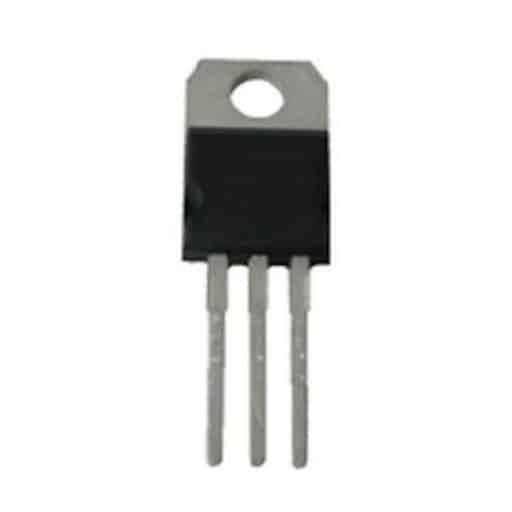

L7805CV +5V 1.5A Voltage Regulator
L7805CV +5V 1.5A Voltage Regulator
Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop
Regular price
£2.19
Regular price
Sale price
£2.19
Unit price
per
Shipping calculated at checkout.
Contact us for availabilityOrder Code: 02-118
Provides local on-card regulation, eliminating the distribution problems associated with single point regulation. It employs internal current limiting, thermal shutdown and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, it can deliver over 1A output current. Primarily as fixed voltage regulator. Can be used with external components to obtain adjustable voltages and currents.
Specifications
| Output Current (Max) | 1.5A |
| Output Voltage | 5V |
| Minimum Input Voltage | 10V |
| Maximum Input Voltage | 35V |
| Polarity | Positive |
| Pins | 3 |
| Mounting | Through Hole |
| Temperature Rating | 0°C to 125°C |
| Casing | TO-220 |
| Tolerance | 2 % output voltage tolerance |
| Protection | Thermal overload protection, Short circuit protection, Output transition SOA protection |
