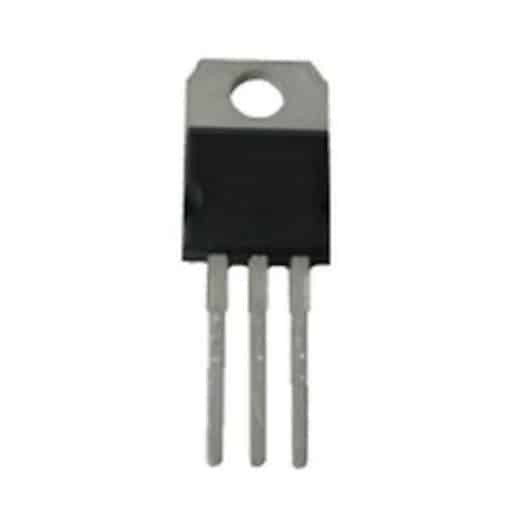

L7809CV +9V 1.5A Voltage Regulator

L7809CV +9V 1.5A Voltage Regulator

Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop

£1.99
£1.99
Sale Sold out
Shipping calculated at checkout.
Contact us for availability
Order Code: 02-119

Provides local on-card regulation, eliminating the distribution problems associated with single point regulation. It employs internal current limiting, thermal shutdown and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, it can deliver over 1A output current. Primarily as fixed voltage regulator. Can be used with external components to obtain adjustable voltages and currents

Specifications
Output Current (Max)1.5A
Output Voltage9V
Minimum Input Voltage15V
Maximum Input Voltage35V
PolarityPositive
Pins3
MountingThrough Hole
Temperature Rating0°C to 125°C
CasingTO-220
Tolerance2 % output voltage tolerance
ProtectionThermal overload protection, Short circuit protection, Output transition SOA protection
