LILYGO T-Display RP2040 Dual ARM Module 1.14 inch LCD

LILYGO T-Display Key Features:

• Powerful MCU: RP2040 Dual ARM Cortex-M0+ for robust processing.
• Ample Storage: Comes with 4MB of Flash memory.
• Multiple Interfaces: Includes 2 UART, 2 SPI, 2 I2C, and 6 PWM channels.
• Programming Flexibility: Supports C/C++ and MicroPython, catering to a wide range of developers.
• Machine Learning Ready: Compatible with TensorFlow Lite for AI projects.

Onboard Functionalities of LILYGO T-Display:

• Interactive Buttons: Two programmable buttons (IO06+IO07) for user input.
• Battery Monitoring: Integrated battery power detection for uninterrupted use.
• Vivid Display: 1.14-inch ST7789V IPS LCD with a 240×135 resolution for clear, colourful output.
• Easy Connectivity: 4-wire SPI interface for simple communication with peripherals.
• Versatile Power Options: Supports both USB and Li-Po battery, ensuring your projects are always powered.

MicroPython Getting Started:
https://www.raspberrypi.org/documentation/microcontrollers/micropython.html

C/C++ Getting Started: https://www.raspberrypi.org/documentation/microcontrollers/c_sdk.html

Official Website Example GitHub (C Language):
https://github.com/raspberrypi/pico-examples

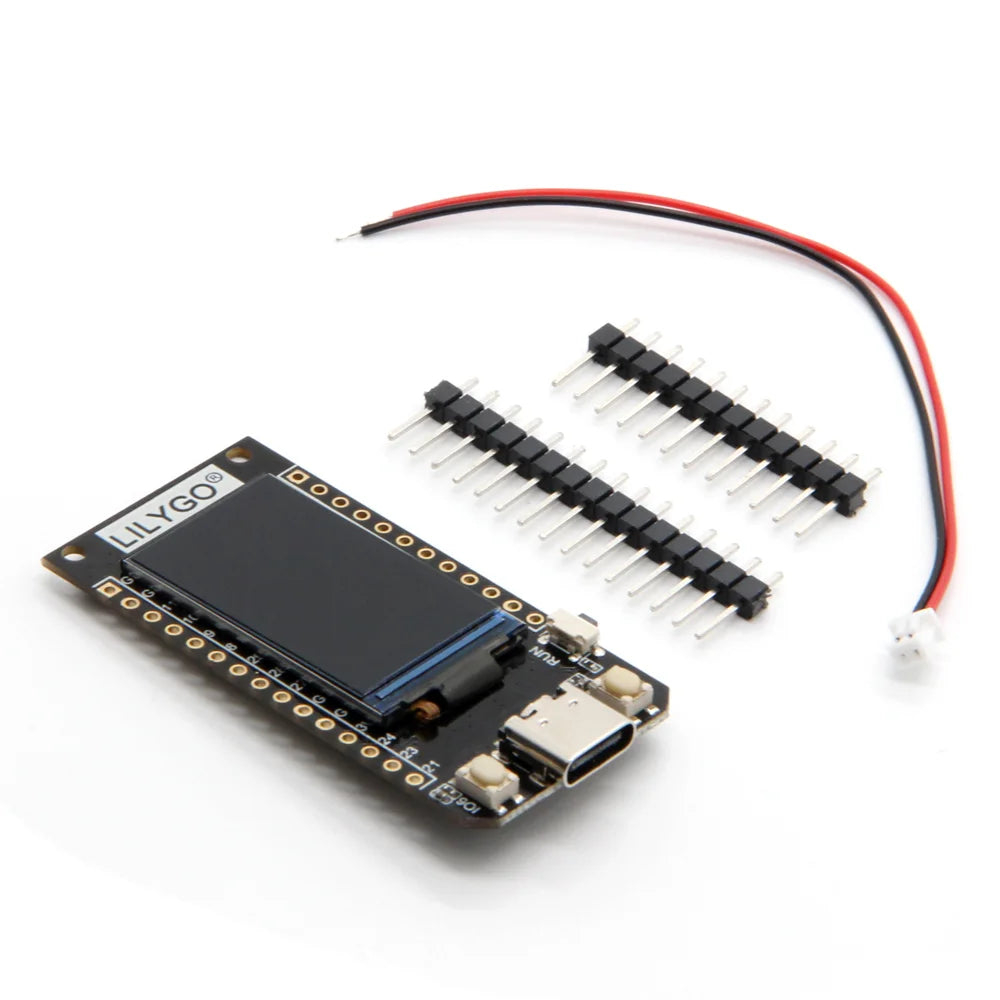

In the package:
1 X T-Display RP2040
1 X Power Cable
2 X Pin
