Microswitch With Long Arm 16A SPDT
Microswitch With Long Arm 16A SPDT
Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop
Regular price
£2.99
Regular price
Sale price
£2.99
Unit price
per
Shipping calculated at checkout.
Contact us for availabilityOrder Code: 14-134

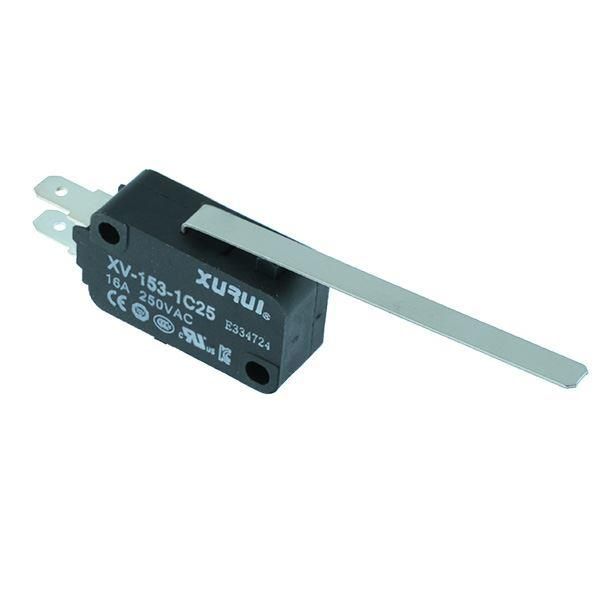

Standard size V3 microswitch featuring a long lever actuator and SPDT contacts. The switch is connected using the 4.8mm terminals and is suitable for a wide range of applications due to its compact size and reliability.
Specifications
| Configuration | SPDT |
| Contacts | NO/NC |
| Maximum Voltage & Current | 16A 250VAC |
| Operating Force | 70g |
| Release force | 6g |
| Click Cycles | 1000000 |
| IP Protection | IP40 |
| Operating Temperature | -25°C to +80°C |
| Terminals | 4.8mm |
