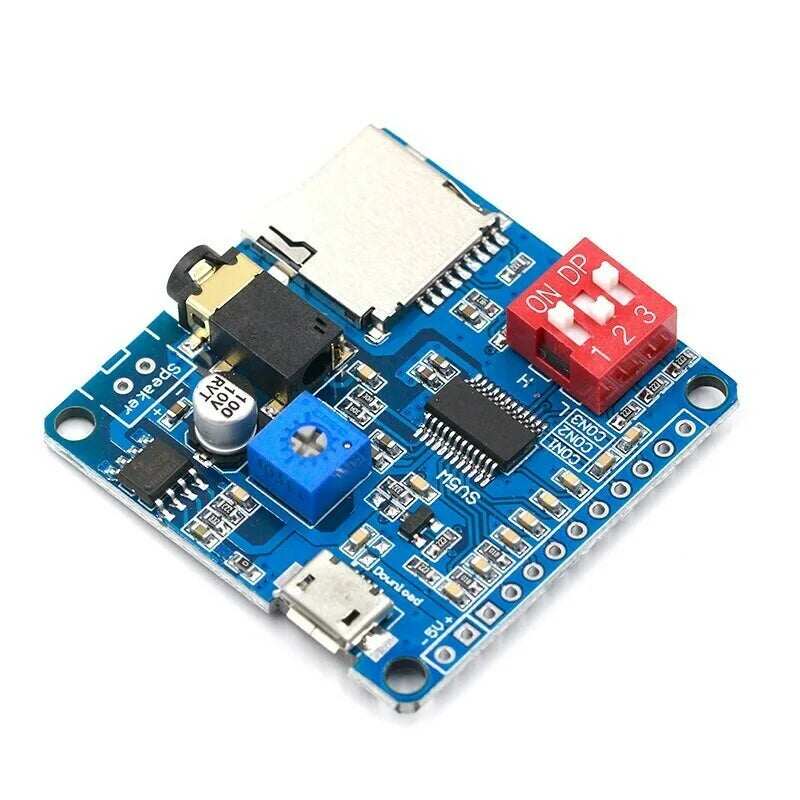

MP3 Player Voice Playback Module

MP3 Player Voice Playback Module. Designed to add sound to your projects, this module offers unparalleled sound quality and functionality, making it a must-have for audio enthusiasts.

• Versatile Decoding: Supports both MP3 and WAV formats.
• High-Quality Output: Boasts a 24-bit DAC output with a dynamic range of 90dB and a signal-to-noise ratio of 85dB.
• Broad Sampling Rate: Ranges from 8kHz to 48kHz, ensuring optimal audio playback.
• File System Compatibility: Fully supports FAT16/FAT32, accommodating up to a 32G TF card.
• Powerful Amplifier: Integrated 5W class D amplifier, capable of driving 4Ω, 3~5W speakers directly.
• UART Serial Control: Enables voice broadcast control, including playback, pause, song selection, and volume adjustments. Supports a vast selection of up to 65,535 songs.
• IO Trigger Functionality: Features 8 IO ports, each triggering 8 tracks or collectively triggering 255 tracks.
• One_line Control: Single bus serial port control for comprehensive audio management.
• Multiple Working Modes: Offers up to 7 working modes, easily configured via 3 IO settings and a dial switch.

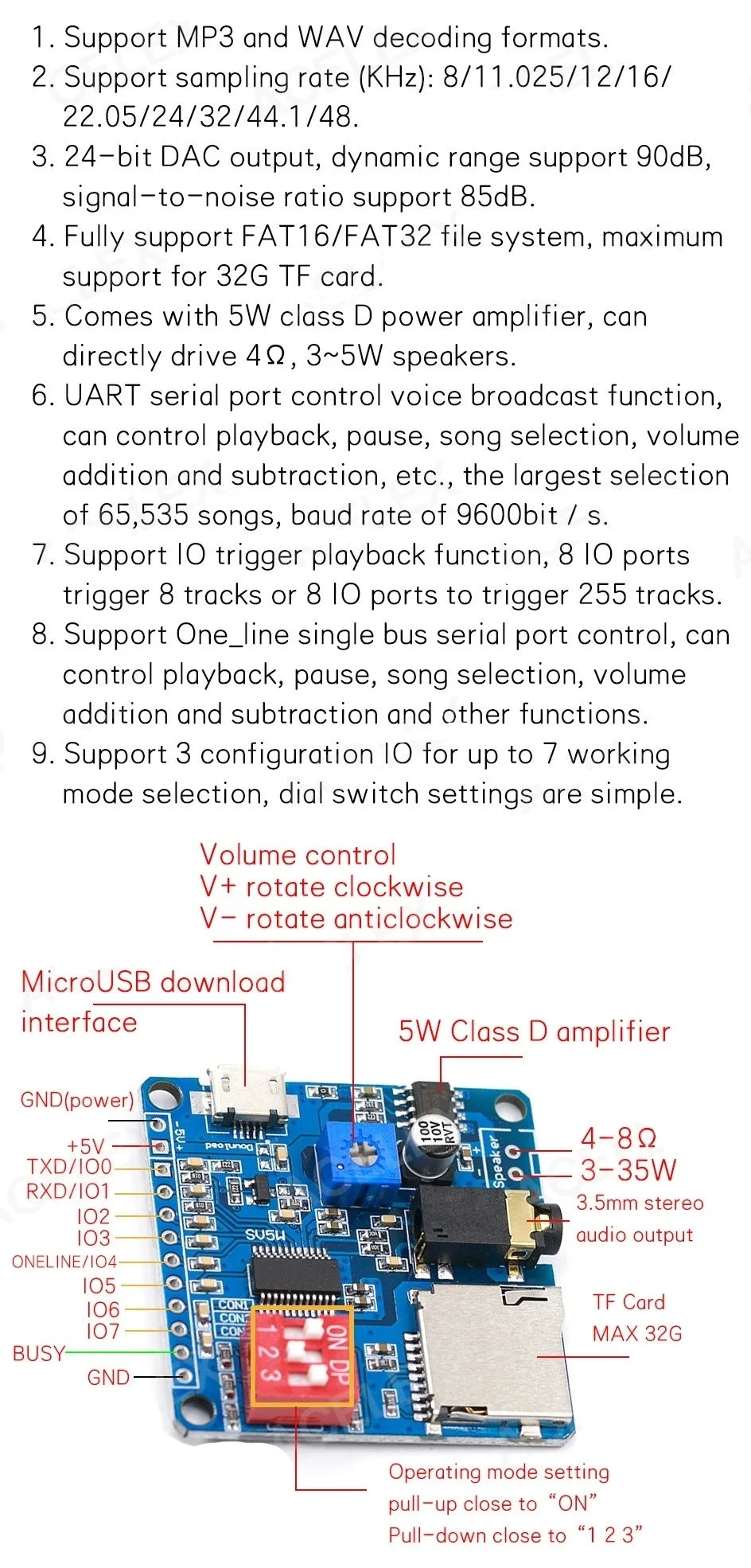

• Comprehensive Interface: Module interface and function definition included for user convenience.

MP3 Player Voice Playback Module Specifications:

• Model: DY-SV5W

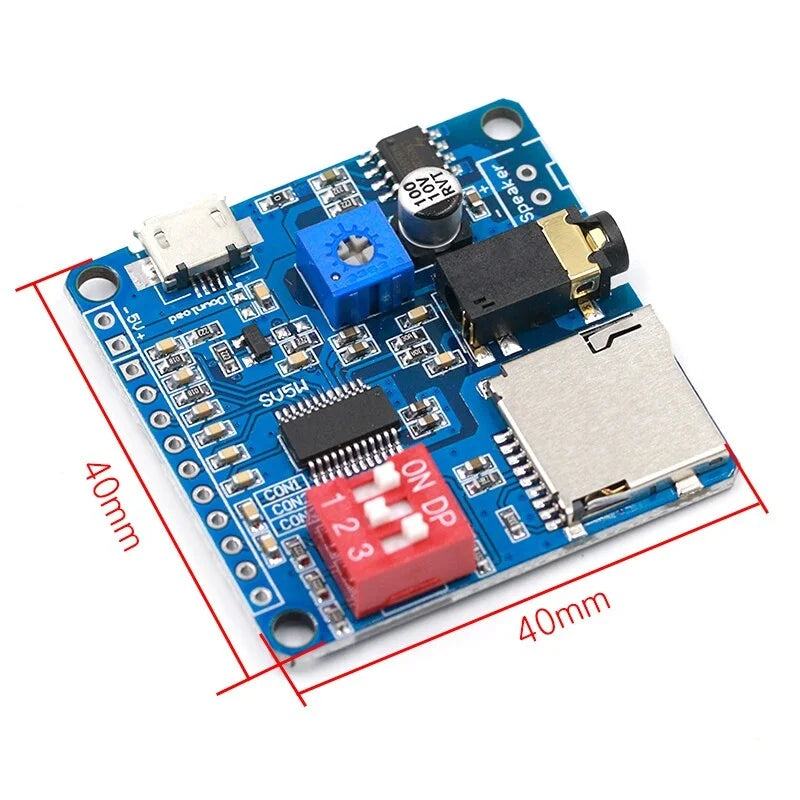

• Dimensions: 40 x 40 mm
