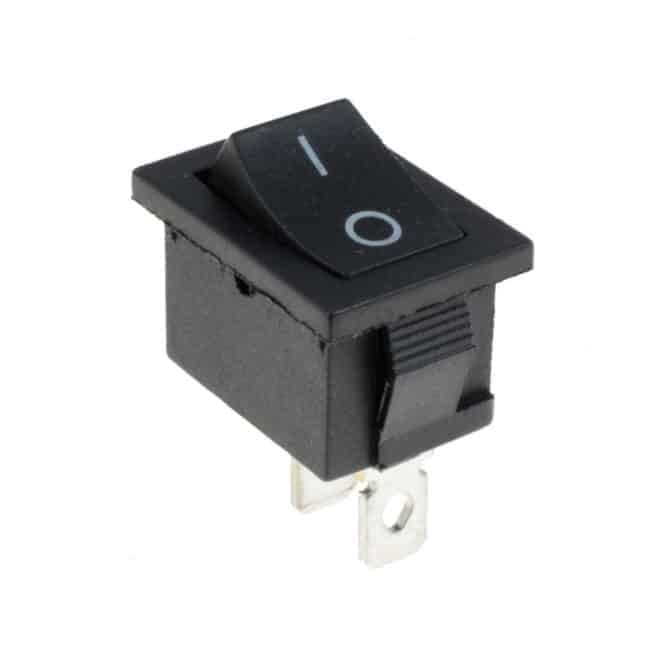

On-Off Latching Rocker Switch SPST, Black
On-Off Latching Rocker Switch SPST, Black
Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop
Regular price
£2.99
Regular price
Sale price
£2.99
Unit price
per
Shipping calculated at checkout.
Contact us for availabilityOrder Code: 14-055
Low cost rectangle rocker switch with SPST contacts and on-off action. The switch is designed for snap-in mounting and is suitable for a wide range of applications.
Specifications
| Type | Rocker |
| Action | Latching (locking) |
| Pole Configuration | SPST |
| Positions | On (Locking) Off (Locking) |
| illumination | None |
| Max Voltage & Current | 6A 250VAC, 10A 125VAC |
| Contact Resistance | 50mΩMax |
| Insulation Resistance | 100MΩMin |
| Dielectric Strength | 1500VAC 1minute |
| Panel Cut-Out Size | 19.2 x 13.2mm |
| Cycle Life | 10,000+ Cycles |
| Dimensions | 25 x 18.8 x 15mm (Height x Length x Width) |
| Operating Temperature | -25°C to +85°C |
| Number of Terminals | TBC |
| Terminal Type | 4.8mm |
