On-Off Latching Illuminated Rocker Switch DPDT, Red
On-Off Latching Illuminated Rocker Switch DPDT, Red
Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop
Regular price
£3.49
Regular price
Sale price
£3.49
Unit price
per
Shipping calculated at checkout.
Contact us for availabilityOrder Code: 14-057

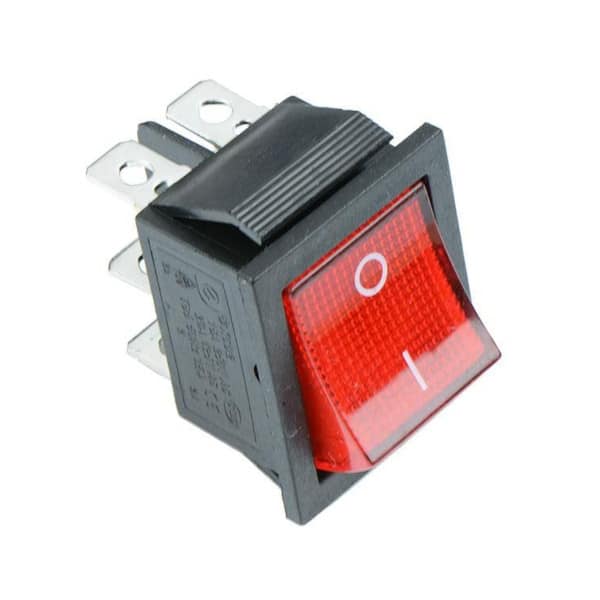

Illuminated rectangle rocker switch with DPDT contacts suitable for domestic, industrial and commercial applications.
Specifications
| Type | Rocker |
| Action | Latching (locking) |
| Pole Configuration | DPDT |
| Positions | On (Locking) Off (Locking) |
| illumination | 220VAC |
| Max Voltage & Current | 250VAC 15A |
| Contact Resistance | 50mΩ Max |
| Insulation Resistance | 100MΩ Min |
| Dielectric Strength | 1500VAC 1 minute |
| Panel Cut-Out Size | 28.5 x 21.5mm |
| Cycle Life | 10,000+ Cycles |
| Dimensions | 35.5 x 31 x 25.3mm (Height x Length x Width) |
| Operating Temperature | -25°C to +85°C |
| Number of Terminals | 6 |
| Terminal Type | 6.3mm |
