On-Off Latching Toggle Switch SPST
On-Off Latching Toggle Switch SPST
Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop
Regular price
£3.99
Regular price
Sale price
£3.99
Unit price
per
Shipping calculated at checkout.
Contact us for availabilityOrder Code: 14-059

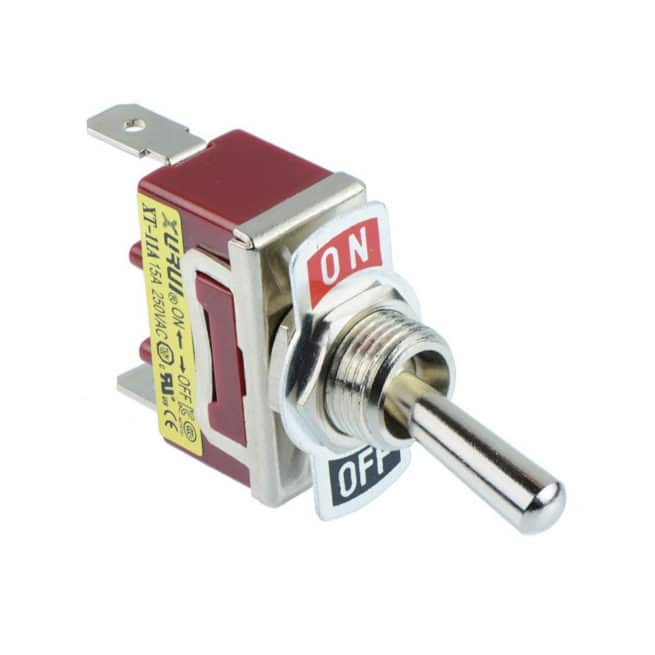

SPST toggle switch with a On-Off operation providing a reliable mechanism suitable for panel mounting applications.
Specifications
| Type | Toggle |
| Action | Latching (locking) |
| Pole Configuration | SPST |
| Positions | On (Locking) Off (Locking) |
| illumination | None |
| Max Voltage & Current | 15A 250VAC |
| Contact Resistance | 25mΩ Max |
| Insulation Resistance | 100MΩ Min |
| Dielectric Strength | 1000VAC 1 minute |
| Panel Cut-Out Size | 12mm |
| Cycle Life | 100,000+ Cycles |
| Dimensions | 58 x 29 x 16mm (Height x Length x Width) |
| Operating Temperature | -25°C to +80°C |
| Number of Terminals | 2 |
| Terminal Type | 6.3mm |
