On-Off Momentary Push To Make Switch, Red
On-Off Momentary Push To Make Switch, Red
Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop
Regular price
£1.99
Regular price
Sale price
£1.99
Unit price
per
Shipping calculated at checkout.
Contact us for availabilityOrder Code: 04-185

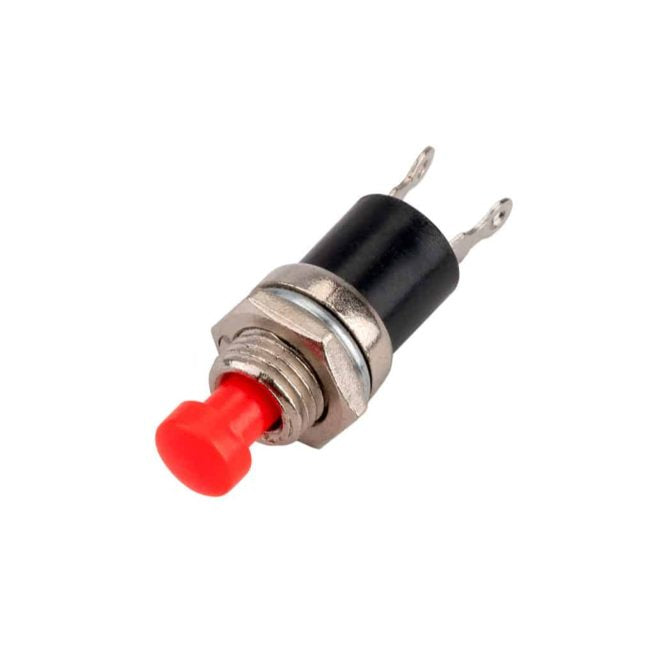

Miniature push-to-make switch with a round bright red actuator button. Rated at 125V AC 1 Amp. Requires 7mm Panel Cut Out
Specifications
| Type | Push To Make |
| Action | Momentary (non-locking) |
| Pole Configuration | SPST |
| illumination | None |
| Max Voltage & Current | 125V AC 1 Amp |
| Contact Resistance | 20mΩ max |
| Insulation Resistance | 500VDC 100MΩ min |
| Dielectric Strength | 1000VAC 1Minute |
| Panel Cut-Out Size | 7mm |
| Cycle Life | 50000+ Cycles |
| Dimensions | Length: 28mm Diameter:10.5mm |
| Construction | Housing: ABS Actuator: Polystyrene (GPPS & HIPS) Contact: Silver Plated Brass Terminals: Tin Plated Brass Spring: Stainless Steel Nut and Washer: Stainless Steel |
| Operating Temperature | -25℃ to +85℃ |
| Number of Terminals | 2 |
| Terminal Type | 2.5mm (Solder Tags) |
