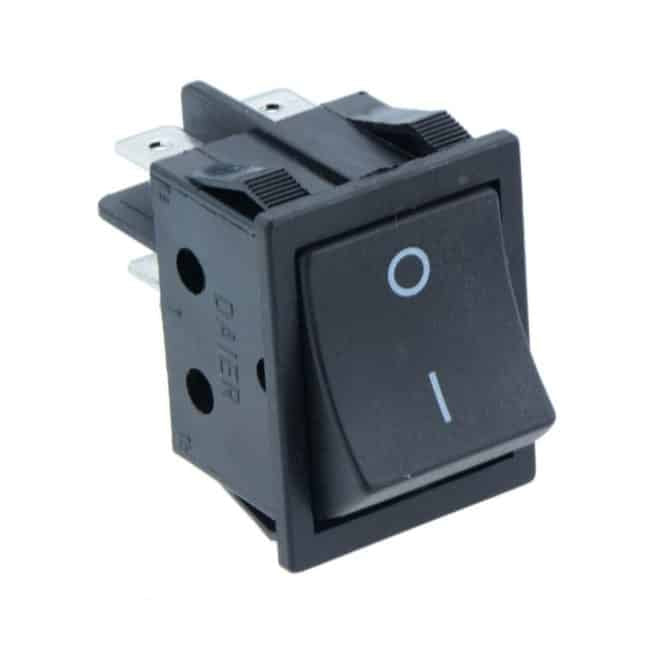

On-Off Momentary Rocker Switch DPDT
On-Off Momentary Rocker Switch DPDT
Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop
Regular price
£3.29
Regular price
Sale price
£3.29
Unit price
per
Shipping calculated at checkout.
Contact us for availabilityOrder Code: 14-141
Momentary rectangle rocker switch with DPST contacts suitable for applications where a higher rated switch is required.
Specifications
| Type | Rocker |
| Action | Momentary (non-locking) |
| Pole Configuration | DPST |
| Positions | On (Non-Locking) Off (Locking) |
| illumination | None |
| Max Voltage & Current | 16A 250VAC, 20A 125VAC |
| Contact Resistance | 35mΩ Max |
| Insulation Resistance | 100MΩ Min |
| Dielectric Strength | 1500VAC 1 minute |
| Panel Cut-Out Size | 28.5 x 21mm |
| Cycle Life | 10,000+ Cycles |
| Dimensions | 35 x 31.4 x 25mm (Height x Length x Width) |
| Operating Temperature | -25°C to +85°C |
| Number of Terminals | 4 |
| Terminal Type | 6.3mm |
