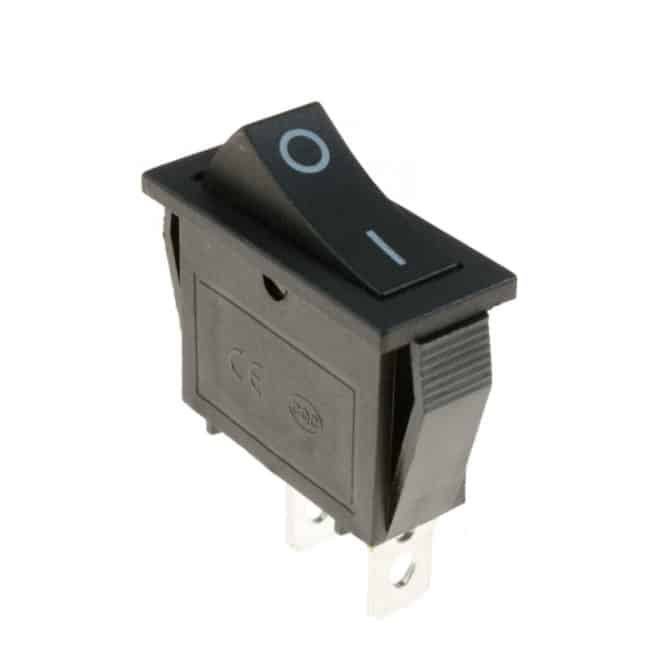

On-Off Momentary Rocker Switch SPST
On-Off Momentary Rocker Switch SPST
Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop
Regular price
£2.99
Regular price
Sale price
£2.99
Unit price
per
Shipping calculated at checkout.
Contact us for availabilityOrder Code: 14-142
Momentary rectangle rocker switch with SPST contacts and Off-(On) action suitable for snap-in mounting. The switch features a compact housing with a high rating making it suitable for a wide range of applications.
Specifications
| Type | Rocker |
| Action | Momentary (non-locking) |
| Pole Configuration | SPST |
| Positions | On (Non-Locking) Off (Locking) |
| illumination | None |
| Max Voltage & Current | 15A 250VAC, 20A 125VAC |
| Contact Resistance | 50mΩ Max |
| Insulation Resistance | 100MΩ Min |
| Dielectric Strength | 1500VAC 1 minute |
| Panel Cut-Out Size | 28 x 10mm |
| Cycle Life | 10,000+ Cycles |
| Dimensions | 36.3 x 13.5 x 30.5mm (Height x Width x Length) |
| Operating Temperature | -25°C to +85°C |
| Number of Terminals | 2 |
| Terminal Type | 6.3mm |
