On-Off Momentary Square Push Switch (Red)
On-Off Momentary Square Push Switch (Red)
Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop
Regular price
£2.99
Regular price
Sale price
£2.99
Unit price
per
Shipping calculated at checkout.
Contact us for availabilityOrder Code: 04-116

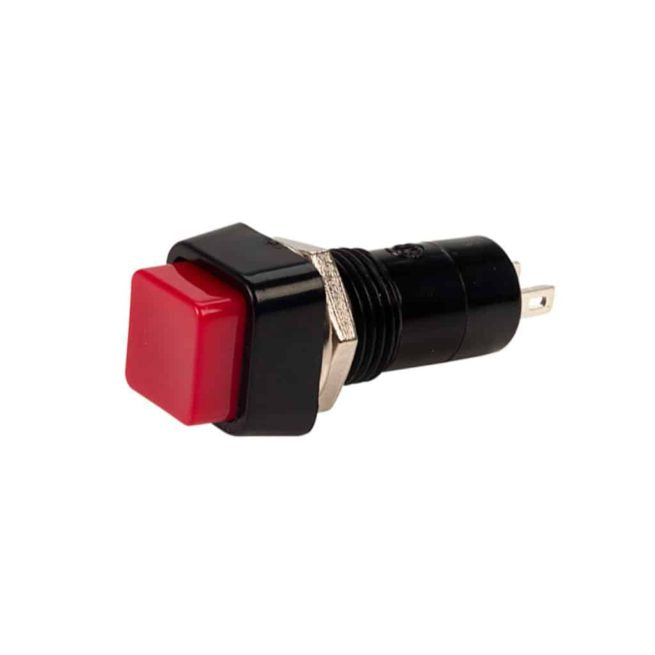

Large non-latching push switch with red square actuator button and silver-plated brass contacts.
Specifications
| Type | Push To Make |
| Action | Momentary (non-locking) |
| Pole Configuration | SPST |
| illumination | None |
| Max Voltage & Current | 3A 125VAC 1.5A 250VAC |
| Contact Resistance | 50mΩ max |
| Insulation Resistance | 500VDC 100MΩ min |
| Dielectric Strength | 1000VAC 1 Minute |
| Panel Cut-Out Size | 12.2mm |
| Dimensions | Button Size: 14.8 x 14.8mm (22mm High) |
| Number of Terminals | 2 |
| Terminal Type | Solder Terminals |
