• On-Off-On Latching Rocker Switch DPDT
1 1

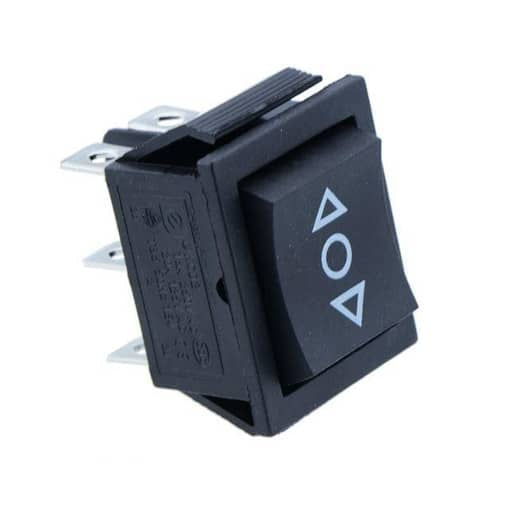

On-Off-On Latching Rocker Switch DPDT

On-Off-On Latching Rocker Switch DPDT

Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop

£3.29
£3.29
Sale Sold out
Shipping calculated at checkout.
Contact us for availability
Order Code: 14-140

Rectangle rocker switch with DPDT contacts suitable for applications where a higher rated switch is required.

Specifications
TypeRocker
ActionLatching (locking)
Pole ConfigurationDPDT
PositionsOn (Locking) Off (Locking) On (Locking)
illuminationNone
Max Voltage & Current16A 250VAC, 20A 125VAC
Contact Resistance50mΩ Max
Insulation Resistance100MΩ Min
Dielectric Strength1500VAC 1 minute
Panel Cut-Out Size28 x 21.5mm
Cycle Life10,000+ Cycles
Dimensions35.5 x 31 x 25.3mm (Height x Length x Width)
Operating Temperature-25°C to +85°C
Number of Terminals6
Terminal Type6.3mm
