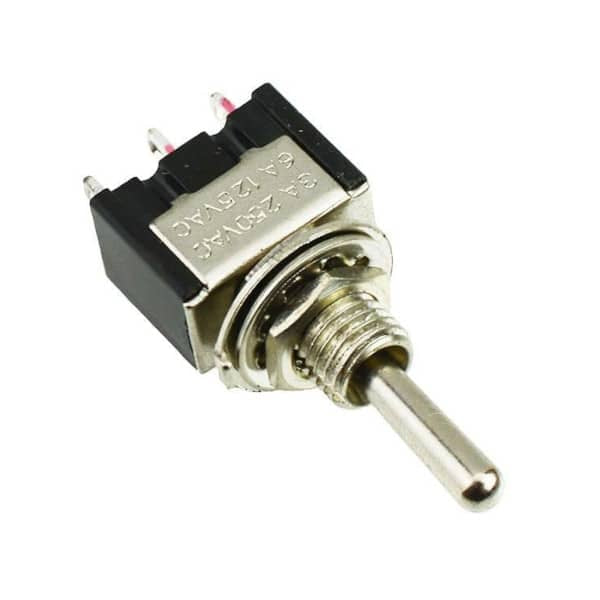

On-Off-On Mini Latching Toggle Switch SPDT
On-Off-On Mini Latching Toggle Switch SPDT
Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop
Regular price
£2.89
Regular price
Sale price
£2.89
Unit price
per
Shipping calculated at checkout.
Contact us for availabilityOrder Code: 14-144
Miniature size toggle switches suitable for a wide range of applications where a small reliable switch is required.
Specifications
| Type | Toggle |
| Action | Latching (locking) |
| Pole Configuration | SPDT |
| Positions | On (Locking) Off (Locking) On (Locking) |
| illumination | None |
| Max Voltage & Current | 3A 250VAC, |
| 6A 125VAC | |
| Contact Resistance | 20mΩ Max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Strength | 1500VAC 1 minute |
| Panel Cut-Out Size | 6mm |
| Cycle Life | 10,000+ Cycles |
| Dimensions | 32.5 x 6.8 x 12.9m (Height x Width x Length) |
| Operating Temperature | -25°C to +80°C |
| Number of Terminals | 3 |
| Terminal Type | Solder |
