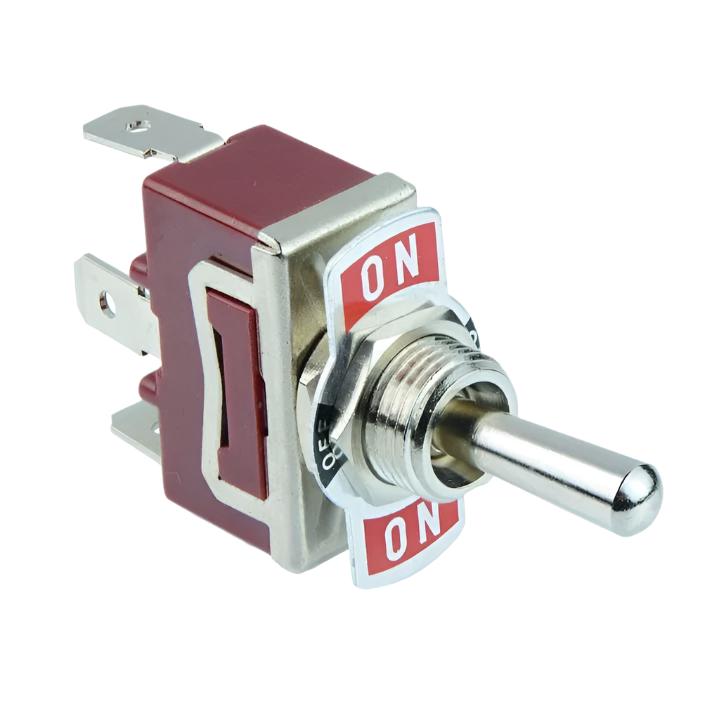

On-Off-On Momentary Toggle Switch SPDT
On-Off-On Momentary Toggle Switch SPDT
Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop
Regular price
£4.49
Regular price
Sale price
£4.49
Unit price
per
Shipping calculated at checkout.
Contact us for availabilityOrder Code: 14-153
Momentary toggle switch with an On-Off-On action suitable for panel mounting.
SPDT contacts
6.3mm quick connect terminals
12mm panel cut-out
Secured by nut
Maximum Panel Thickness: 5mm
Dimensions: 55.5 x 29.6 x 16mm (Height x Length x Width)
Maximum Current: 15A
Maximum Voltage: 250VAC
Specifications
| Type | Toggle |
| Action | Momentary (non-locking) |
| Pole Configuration | SPDT |
| Positions | On (Non-Locking) Off (Locking) On (Non-Locking) |
| illumination | None |
| Max Voltage & Current | 15A 250VAC |
| Contact Resistance | 25mΩ Max |
| Insulation Resistance | 100MΩ Min |
| Dielectric Strength | 1000VAC 1 minute |
| Panel Cut-Out Size | 12mm |
| Cycle Life | 100,000+ Cycles |
| Dimensions | 55.5 x 29.6 x 16mm (Height x Length x Width) |
| Operating Temperature | -25°C to +80°C |
| Number of Terminals | 3 |
| Terminal Type | 6.3mm |
