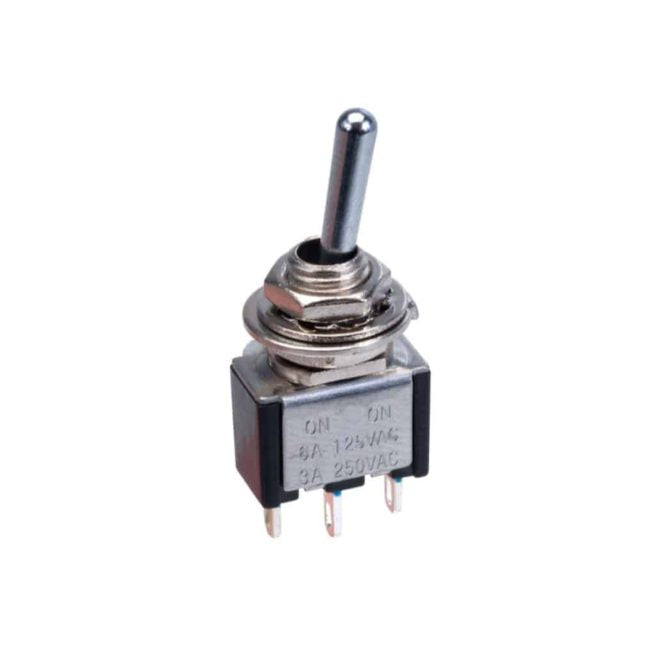

On-On Mini Latching Toggle Switch SPDT
On-On Mini Latching Toggle Switch SPDT
Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop
Regular price
£2.99
Regular price
Sale price
£2.99
Unit price
per
Shipping calculated at checkout.
Contact us for availabilityOrder Code: 04-056
Buy Miniature Toggle Switch SPDT On-On. Panel mounting miniature toggle switch.
Specifications
| Type | Toggle |
| Action | Latching (locking) |
| Pole Configuration | SPDT |
| Positions | On (Locking) On (Locking) |
| illumination | None |
| Max Voltage & Current | 250VAC 3A , 125VAC 6A |
| Contact Resistance | 50mΩ Max |
| Insulation Resistance | 500V DC 100MΩ Min |
| Dielectric Strength | AC 1,000V 1 min |
| Panel Cut-Out Size | 6.2mm |
| Number of Terminals | 3 |
| Terminal Type | Solder |
