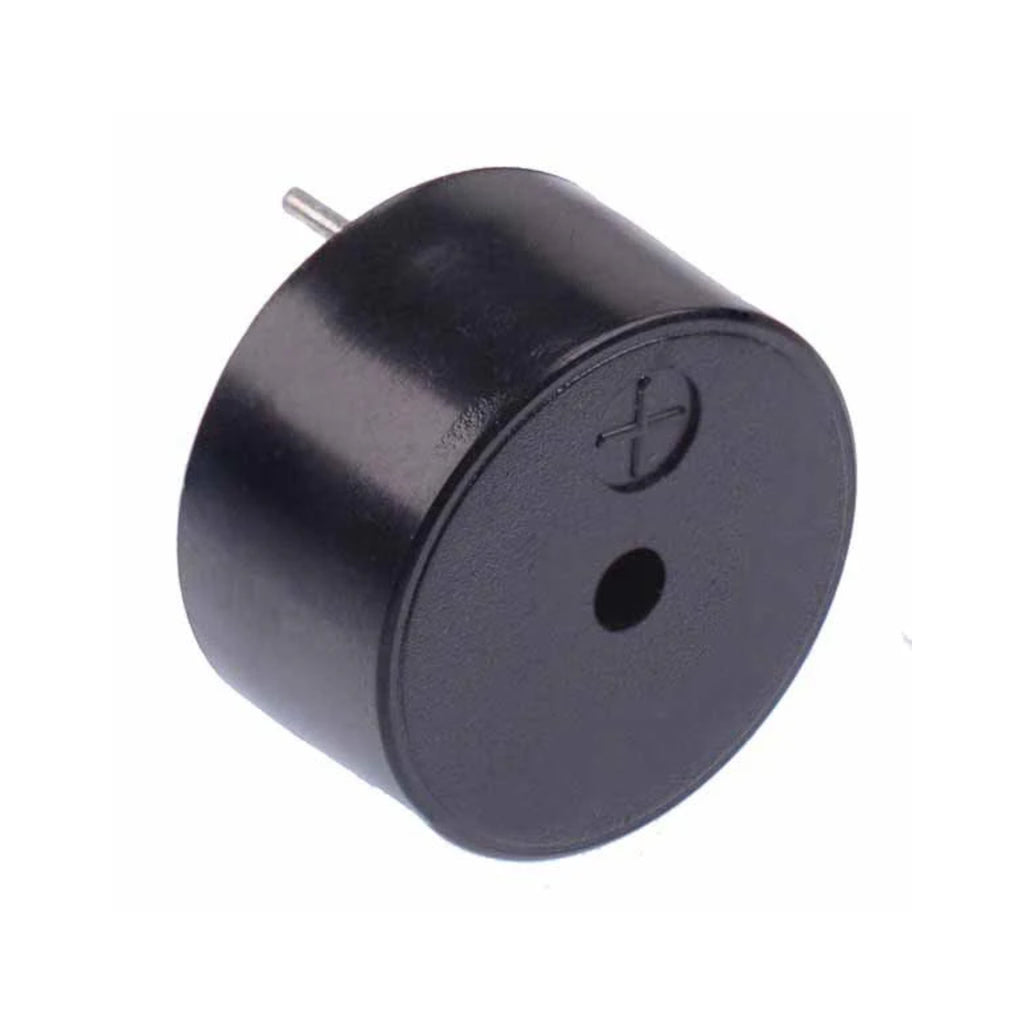

Piezo PCB Mountable Buzzer
Piezo PCB Mountable Buzzer
Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop
Regular price
£1.99
Regular price
Sale price
£1.99
Unit price
per
Shipping calculated at checkout.
Contact us for availabilityOrder Code: 14-204
5V PCB mounting piezo sound generator featuring a 80dB tone and 3 to 9VDC operating voltage. The buzzer features a 7.8mm height and the polarity is marked on the case for easy installation. Built-in oscillating circuit
Specifications
| Rated Voltage | 5V DC |
| Operating Voltage | 3 to 9VDC |
| Maximum Rated Current | 8mA |
| Pitch | 7.62mm PCB pin pitch |
| Dimensions | 14 x 7.8mm (Diameter x Height) |
