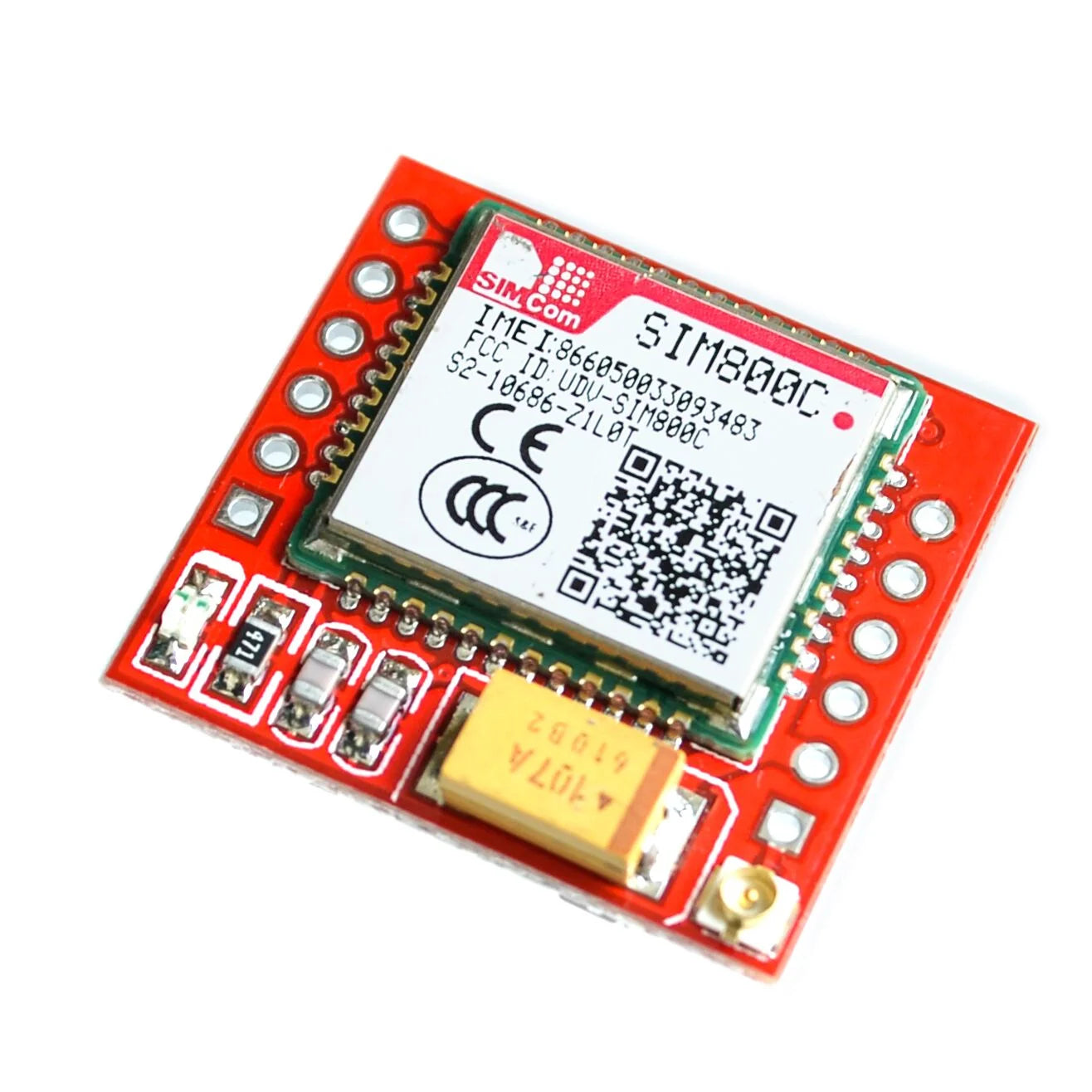

SIM800L GSM GPRS Module 5V/3.3V TTL with Bluetooth

Elevate your GSM and GPRS experience with the SIM800L module. Reliable, efficient, and backed by our commitment to quality, it’s the perfect addition to your tech toolkit.

• • Supply Voltage Range: 3.8V – 4.2V.
  • Optimal Supply Voltage: 4V, ensuring efficient performance.
  • Sleep Mode Consumption: Less than 2.0mA – designed for power-saving.
  • Idle Mode: Below 7.0mA, conserving energy when not actively transmitting.
  • Average GSM Transmission: 350mA.
  • Peak GSM Transmission: Up to 2000mA.
• Compact Design:
  • Dimensions: A neat 25 x 23 mm, making it suitable for various applications.
• Interface & Connectivity:
  • UART Interface: Max. 2.8V, operated with AT commands for ease of communication.
  • Bluetooth Integration: Enhance your projects with wireless connectivity.
  • Quad-Band Support: Works across 850 / 950 / 1800 / 1900 MHz frequencies, ensuring broad coverage.
• Additional Features:

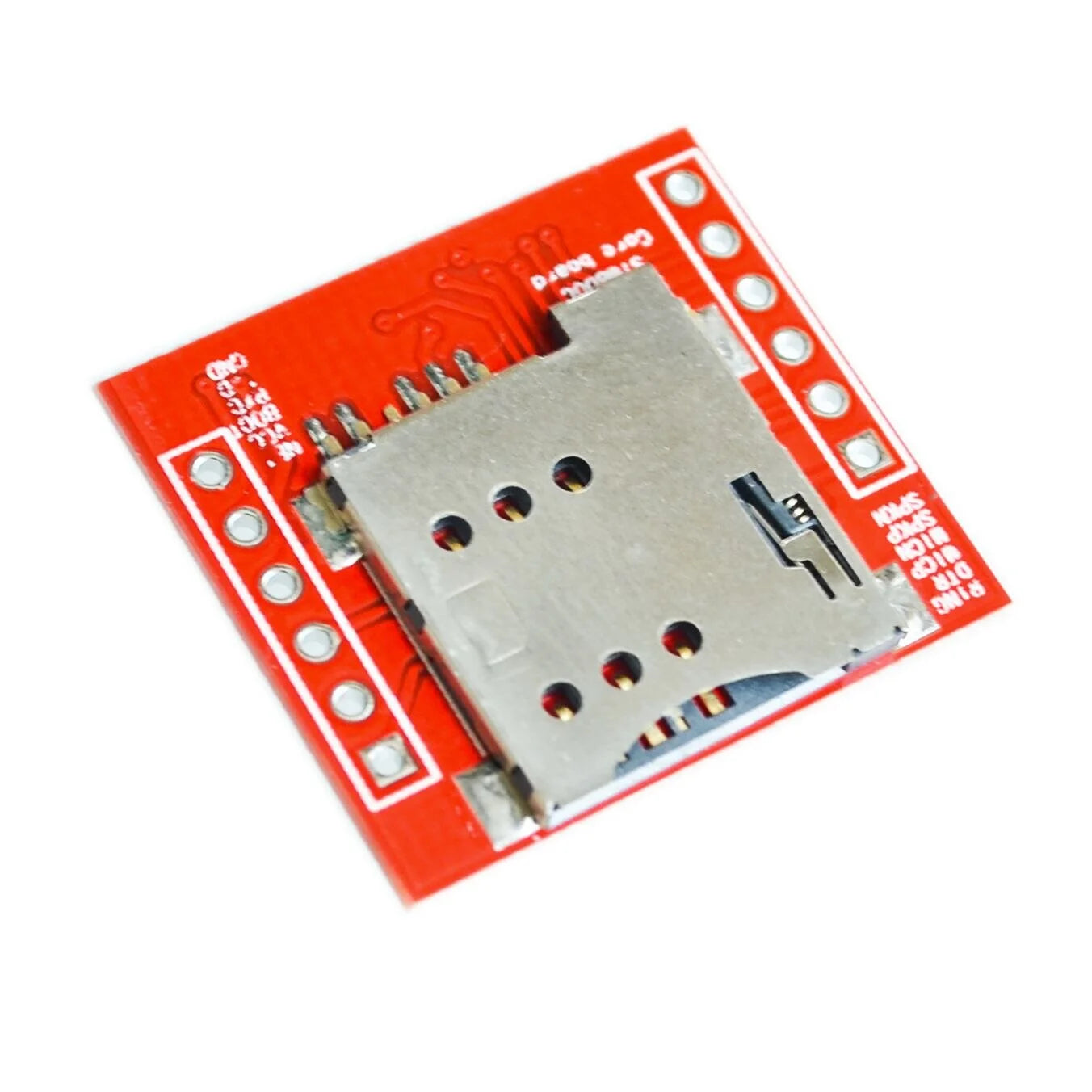

  • MicroSIM Socket: Located on the bottom side for a compact design.
  • Antenna Connector: IPX type for versatile antenna options.
  • Status Indication: Integrated LED for real-time status updates.
  • Robust Temperature Tolerance: From a chilling -40°C to a hot +85°C, it’s built to perform in diverse environments.

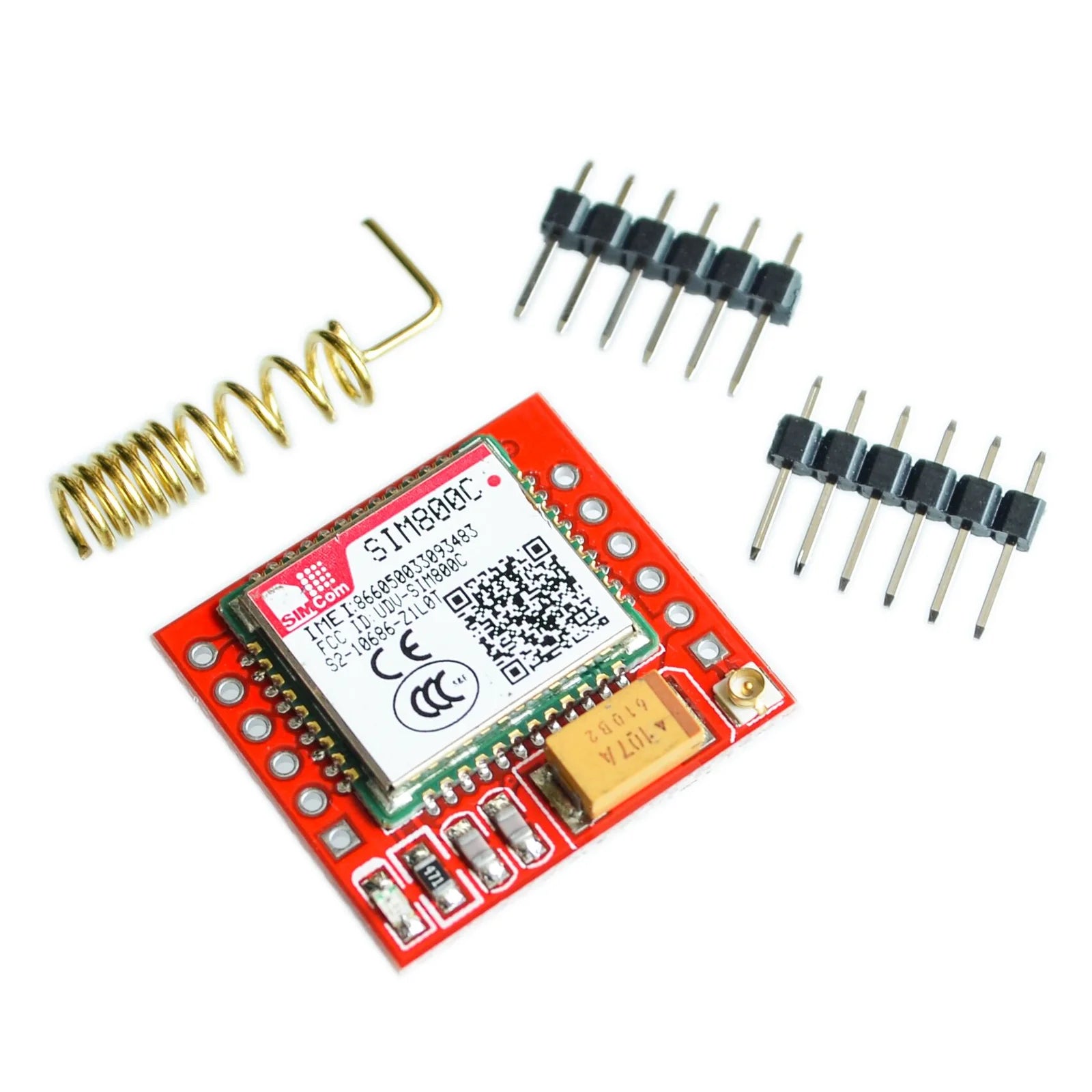

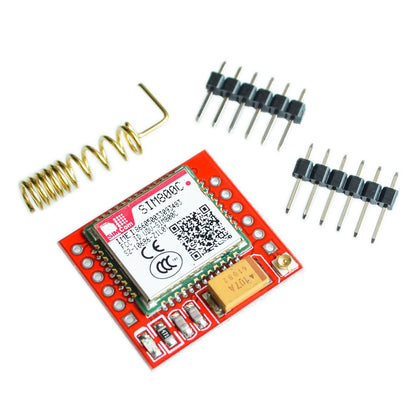

What’s in the Box of SIM800L:

• Main Unit: SIM800L Module with Bluetooth.
• Connectivity Enhancers: Gold pin headers, wire antenna.
• Optimal Signal Reception: PCB antenna paired with a pigtail and an IPX connector.
